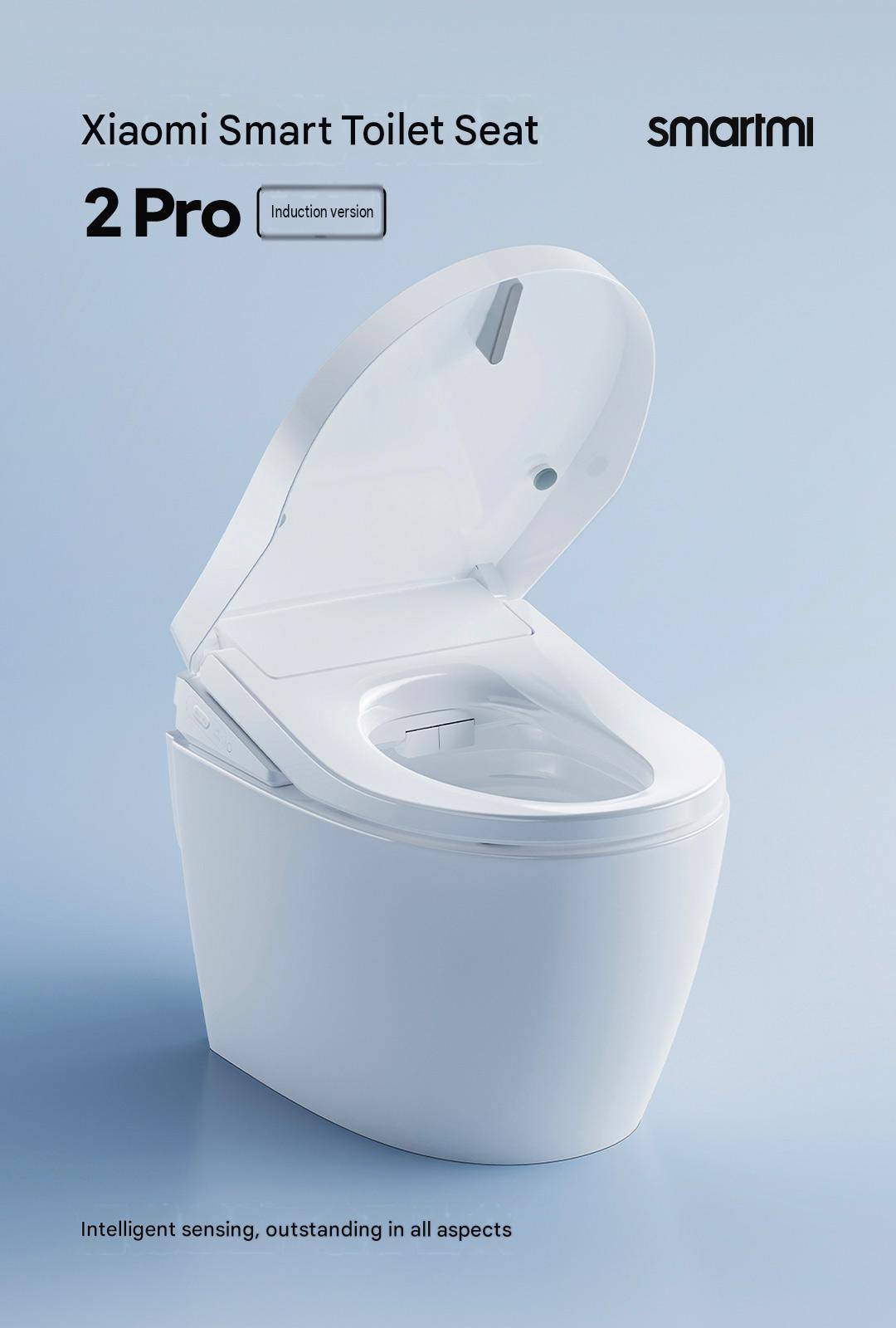

Smartmi 2 Pro Smart Toilet Seat (Sensor Version) Heated Seat, Smart Deodorization, Antibacterial Warm Air Drying

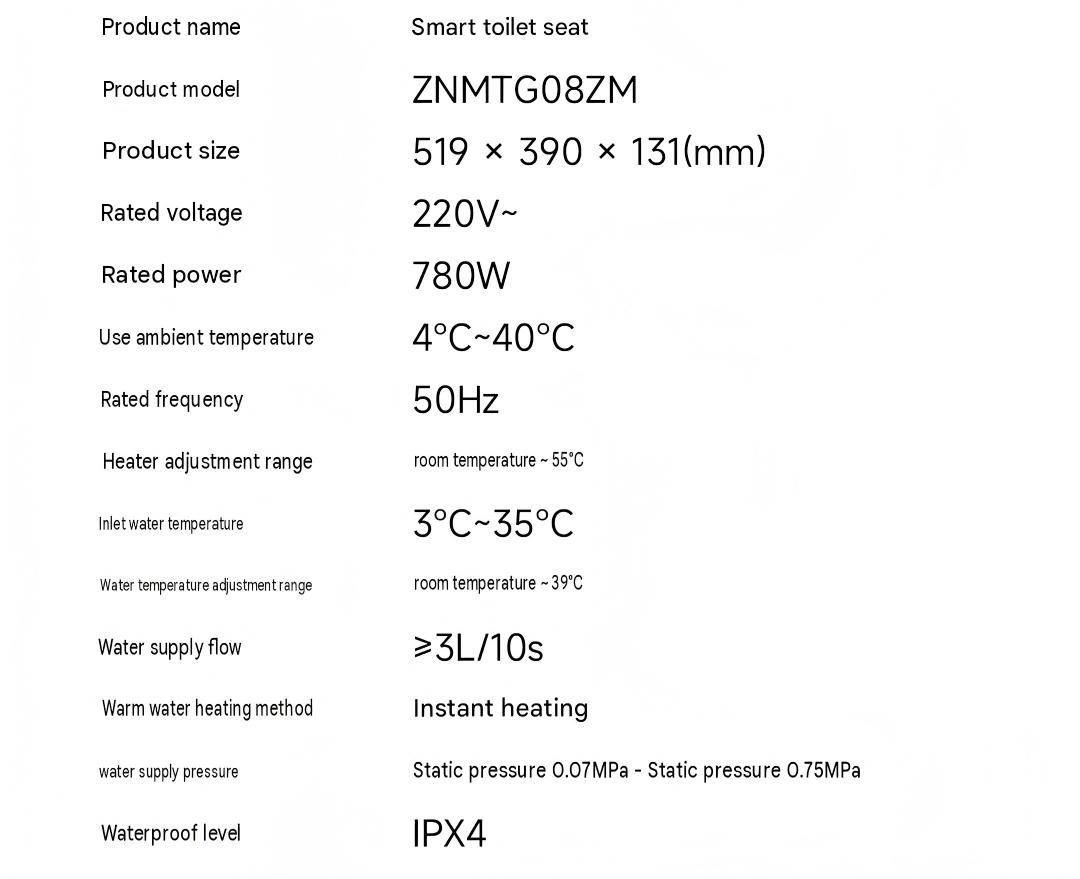

Specifications:

Product Name: Smart Toilet Seat
Product Model: ZNMTG08ZM

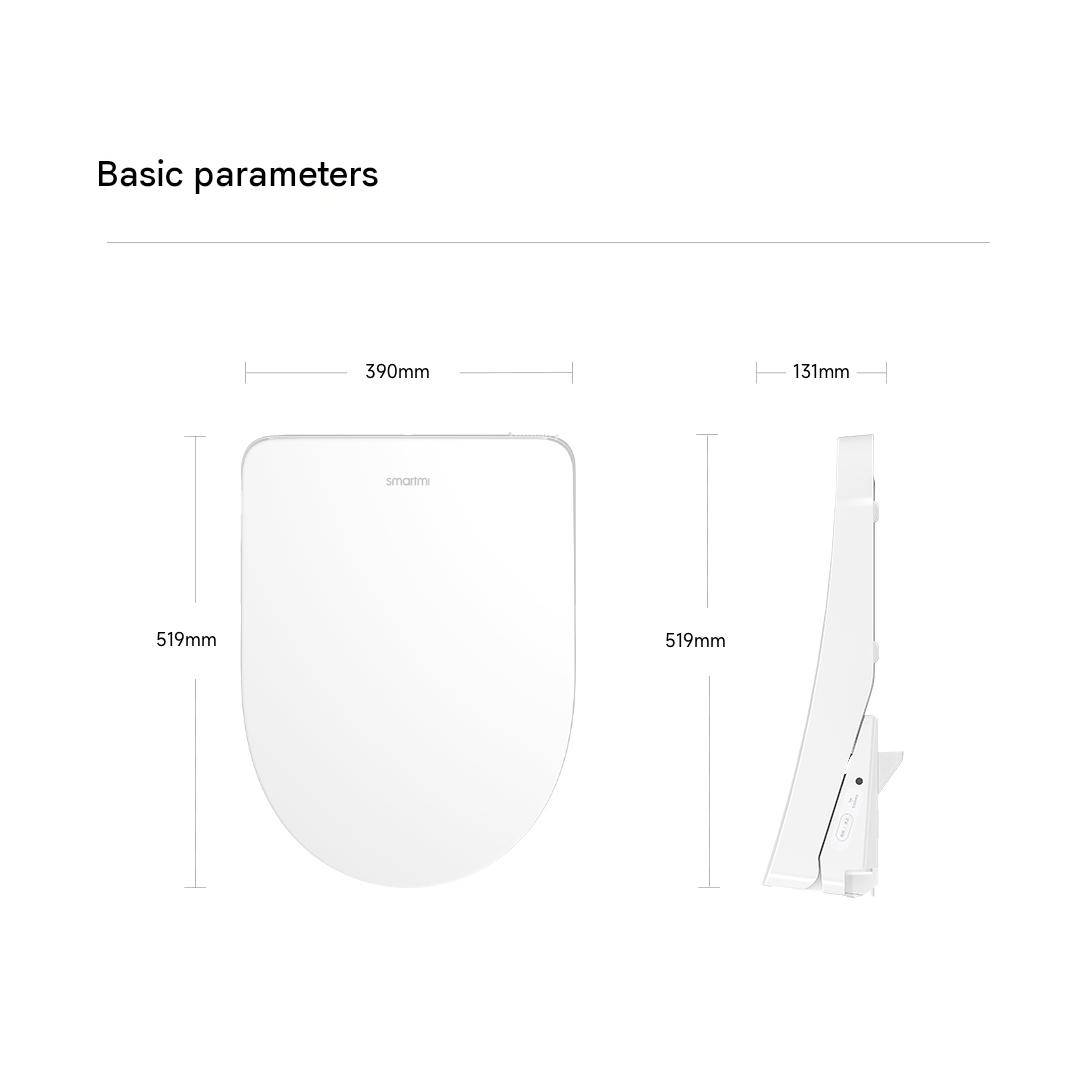

Product Dimensions: 519 × 390 × 131 (mm)
Rated Voltage: 220V~
Rated Power: 780W
Operating Ambient Temperature: 4°C–40°C
Rated Frequency: 50Hz
Warm Air Adjustment Range: Ambient temperature–55°C
Inlet Water Temperature: 3°C–35°C
Water Temperature Adjustment Range: Ambient temperature–39°C
Water Supply Flow Rate: ≥3L/10s

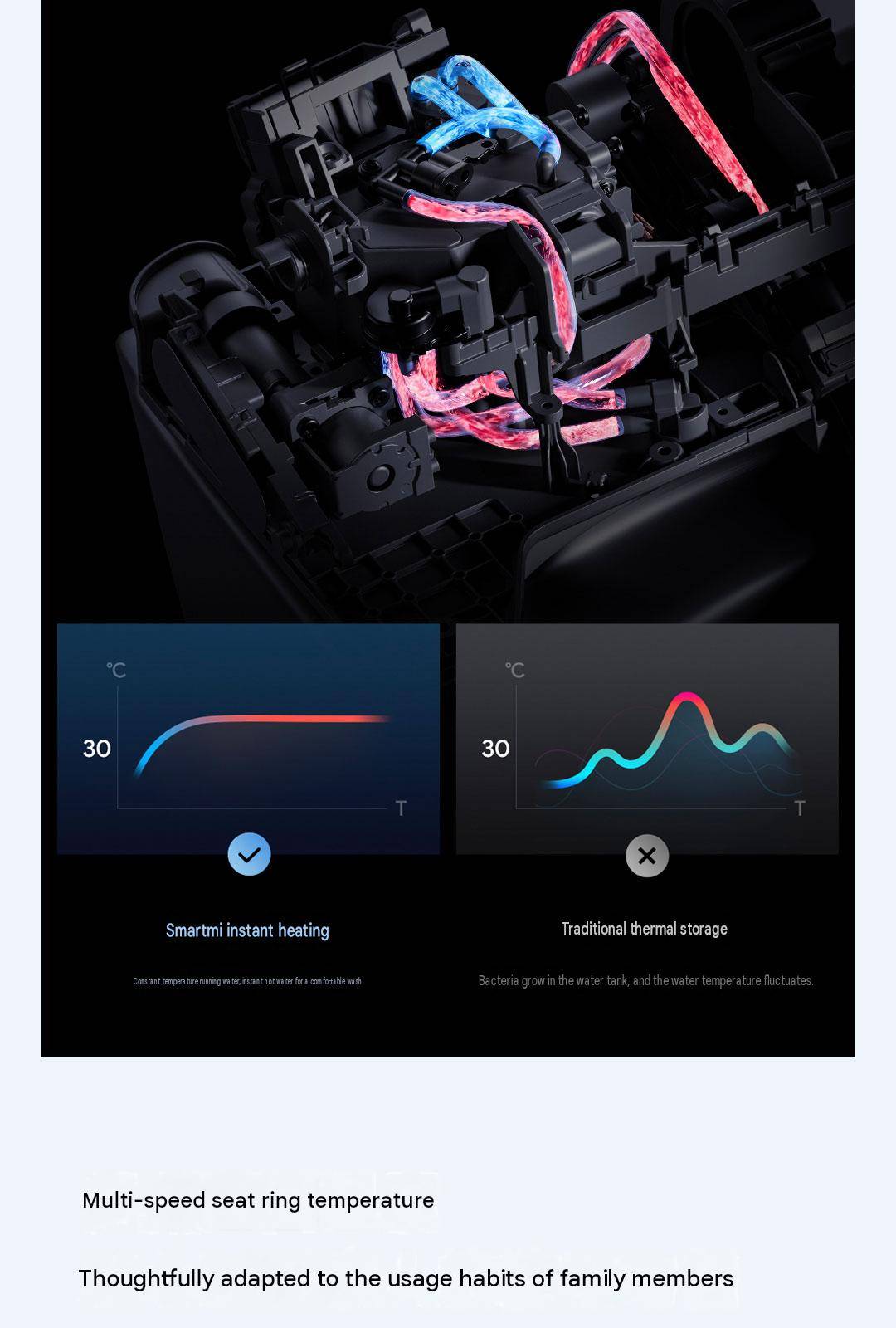

Warm Water Heating Method: Instant heating
Water Supply Pressure: Static pressure 0.07 MPa–0.75 MPa
Waterproof Rating: IPX4

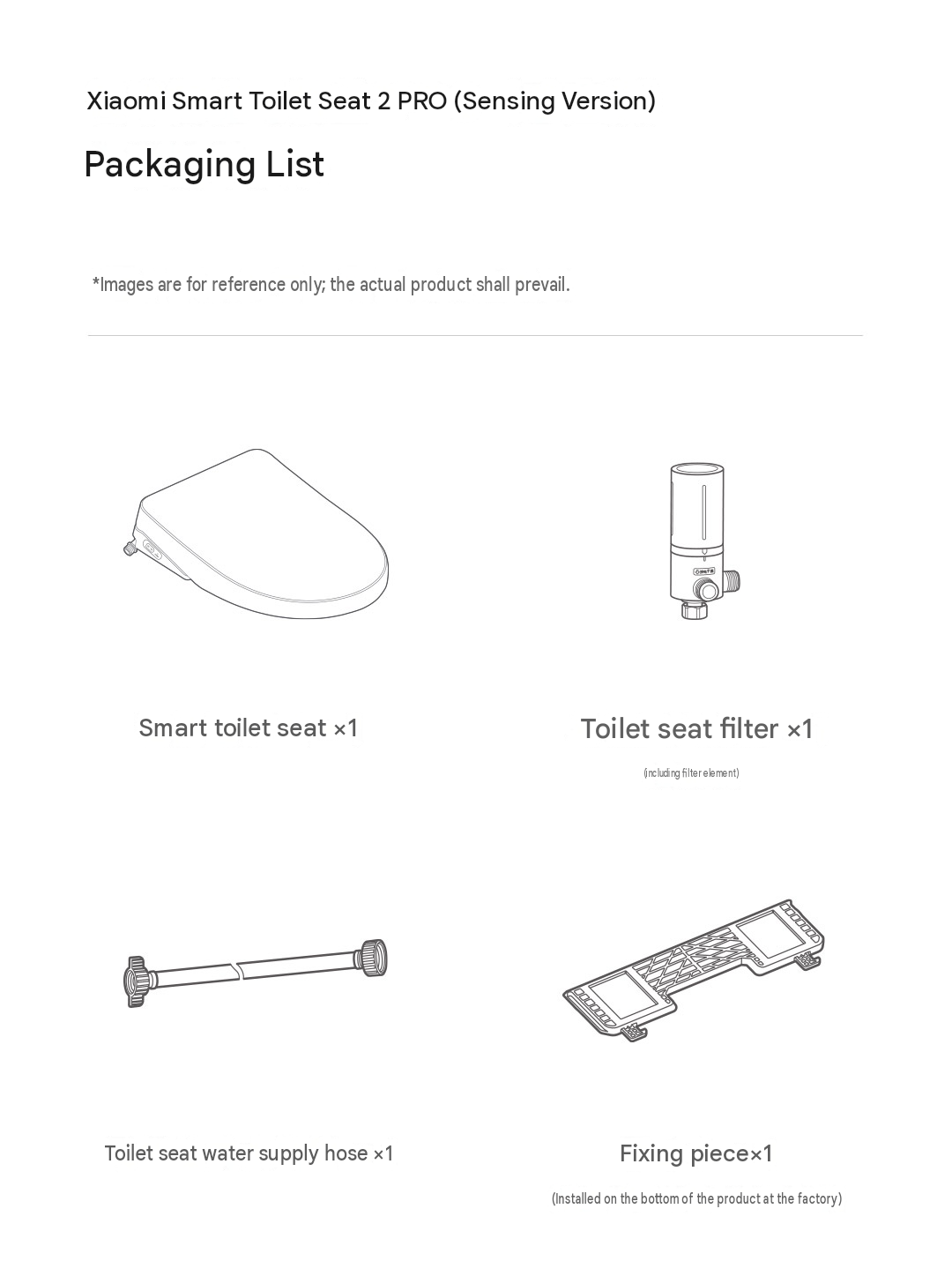

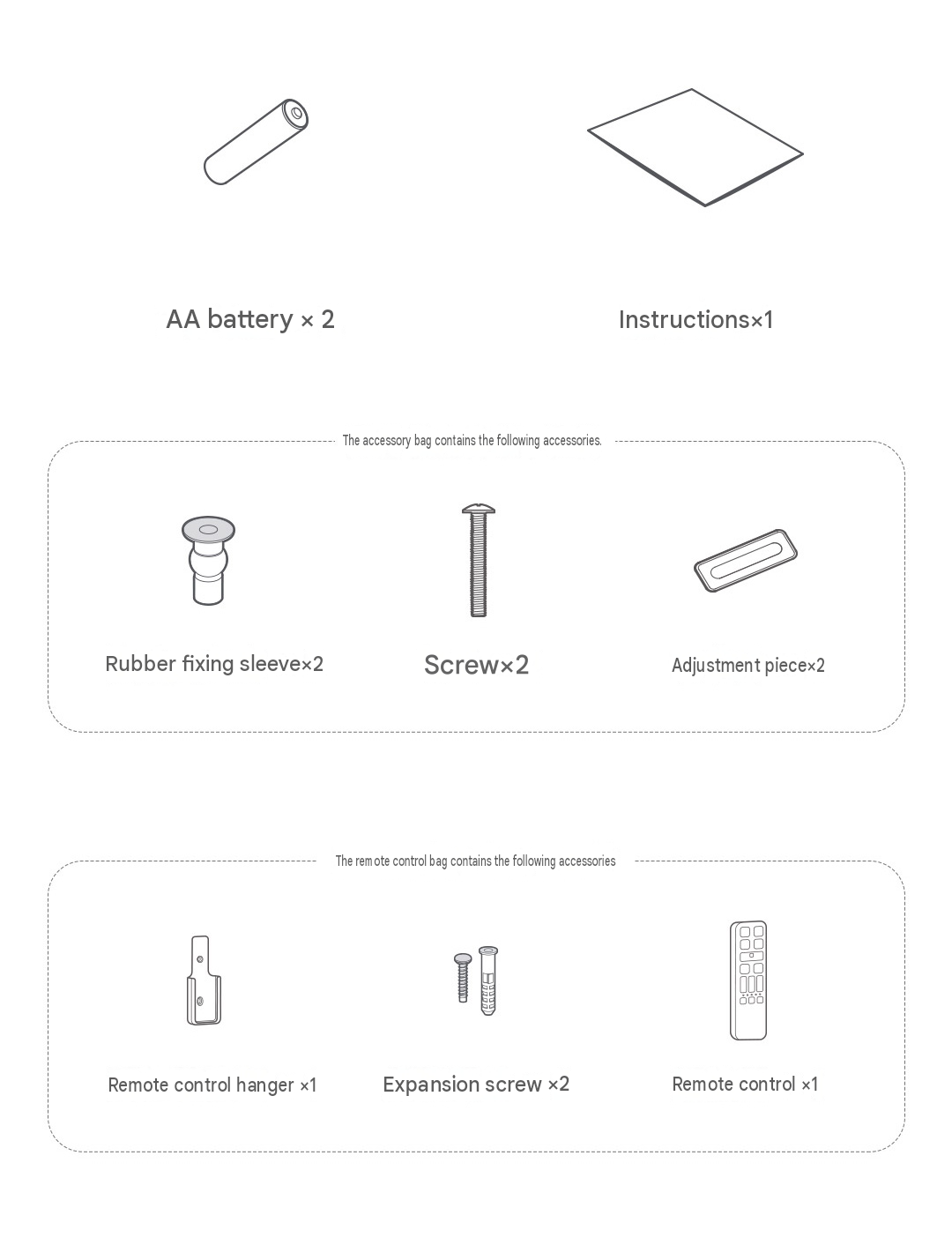

Packing List
1 * Smart toilet seat

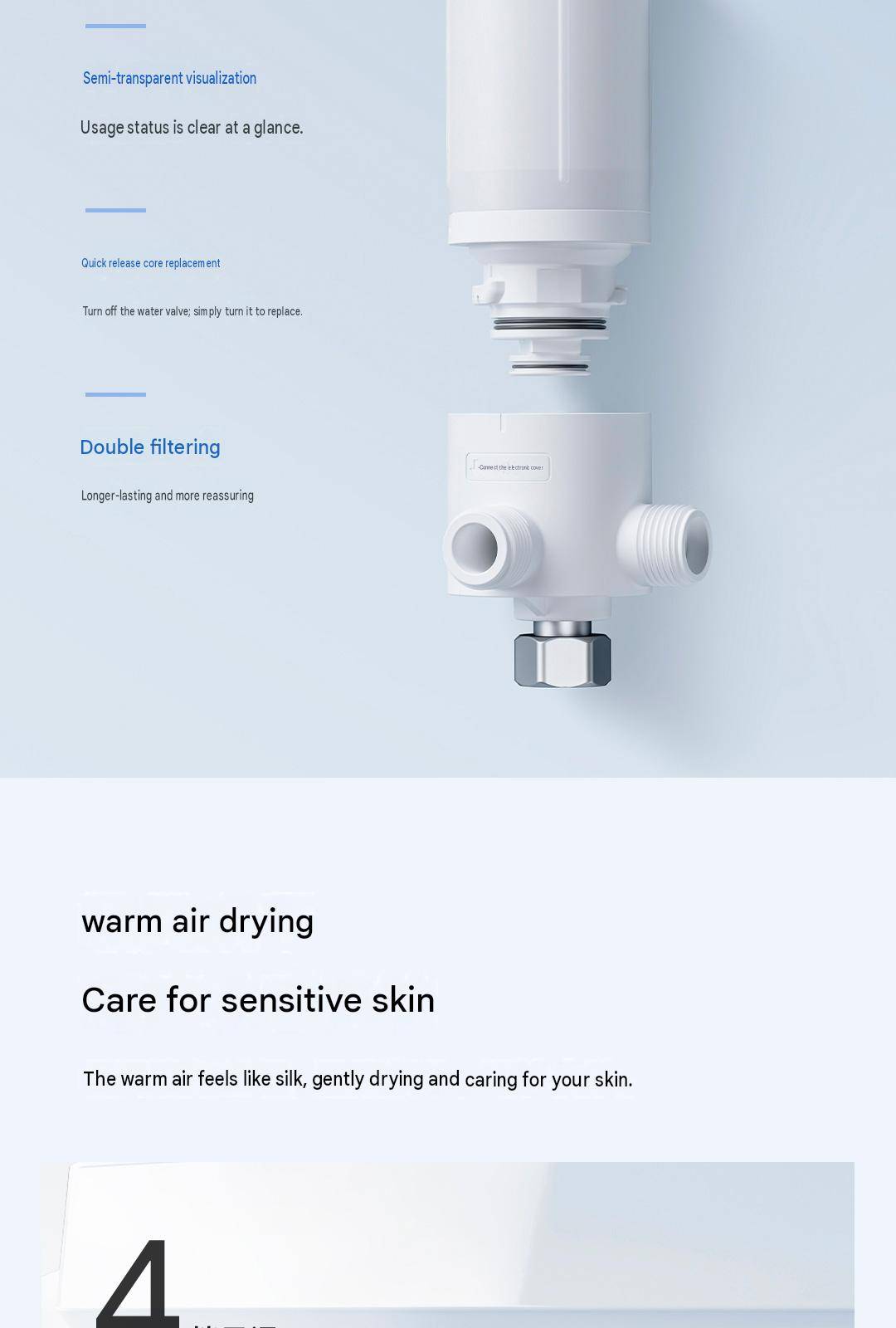

1 * Toilet seat filter (including filter cartridge)
1 * Water supply hose
1 * Mounting bracket (pre-installed on the bottom)
2 * AAA batteries
1 * Accessory kit (2 x rubber mounting sleeves, 2 x screws, 2 x adjustment plates)
1 * Remote control mounting set (1 x remote holder, 2 x expansion screws, 1 x remote control)
1 * User manual

Notice

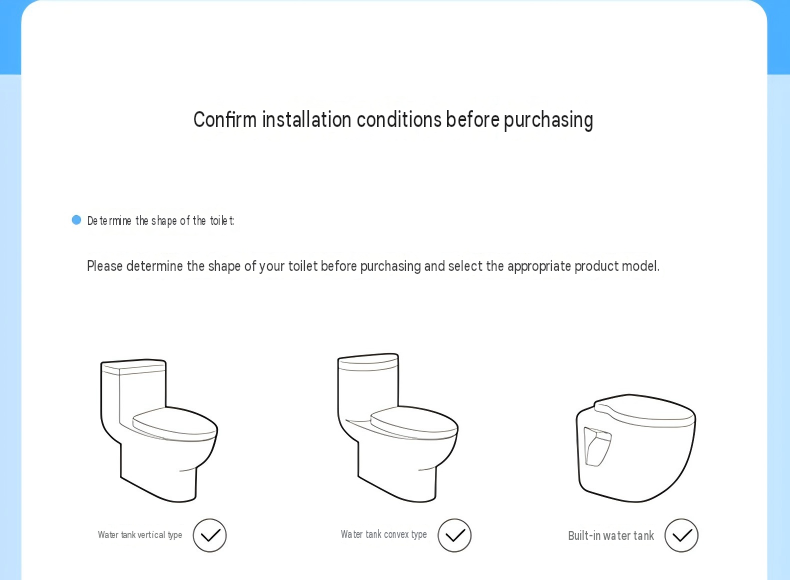

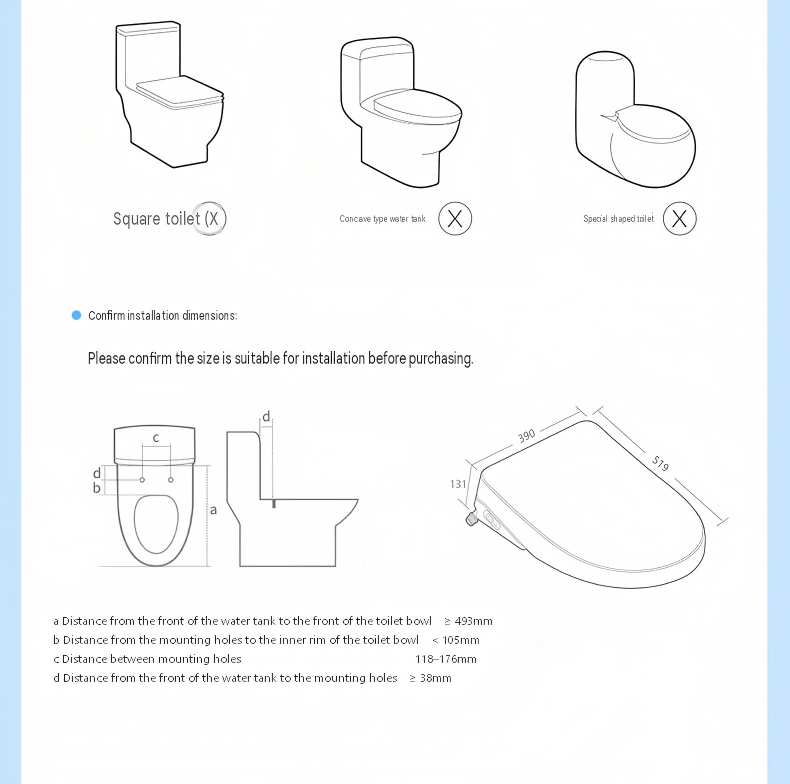

First, please check if your toilet's shape matches the one shown in the diagram.
If the shape is compatible, please measure the following four dimensions as indicated:
a Distance from the mounting holes to the front of the toilet：455 mm – 495 mm
b Distance from the mounting holes to the inner rim of the toilet bowl： <105 mm
c Distance between the mounting holes： 118 mm – 176 mm
d Distance from the front of the water tank to the mounting holes： ≥38 mm

If the dimensions are compatible, please verify the installation environment:
1. A 3-pin, 10A power outlet is available within 1.5 meters of the toilet.
2. A cold water inlet valve is located within 0.5 meters to the right of the toilet (when seated).
3. The water supply must be standard tap water; connection to reclaimed water or other contaminated water sources is prohibited.
