LONGER RAY5 10W Laser Engraver 0.06x0.06mm Laser Spot Touch Screen Offline Carving 32-Bit Chipset Working Area 400x400mm

Product parameters
Model Number：Ray5 10W
Laser Technology：Dioser Technology
Working Area：400x400mm (15.75x15.75 inch)
Laser Wavelength：450nm
Focal Length：Fixed Focus-50mm
Laser Spot Size：0.06x0.06mm
Laser Optical Output Power：10W
Z Axis-Height Range：Up to 47mm
Fastest Working Speed：10000mm/min
Engraver Output：DC12V / 5A
Engraver Input：AC 110-240V
Software：LaserGRBL & LightBurn

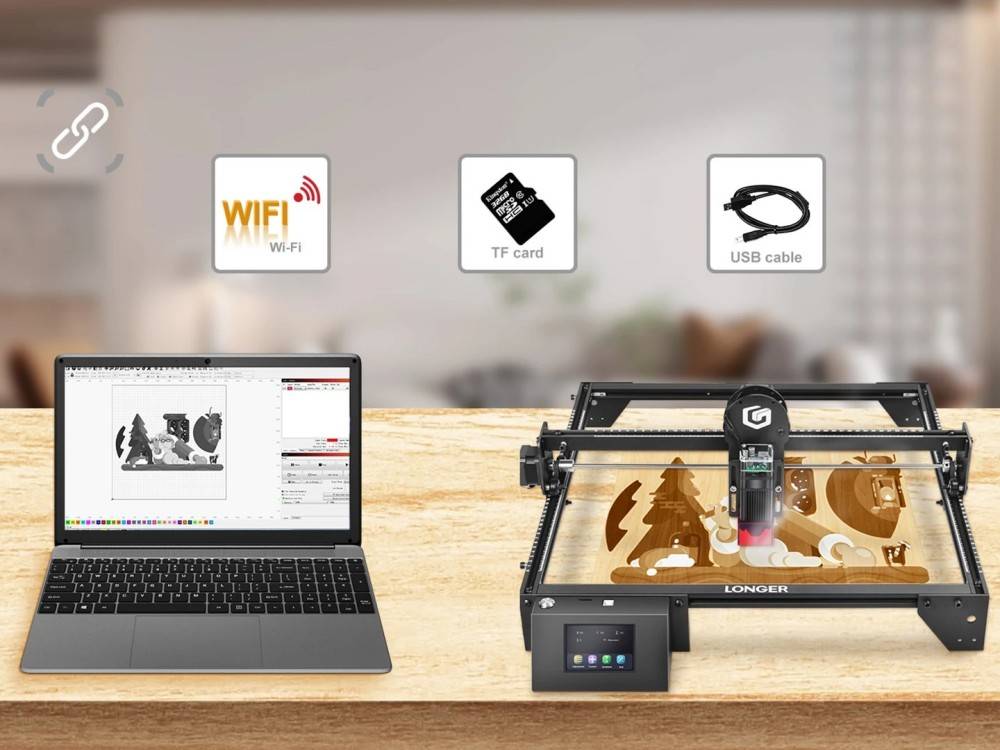

Connection：USB / TF Card / Wifi
Laser Engraver Size：586 x 583 x 176.5mm (23.07x22.95x6.95 inch)
Package Size：621x299 x 127mm
Carving and cutting materials：20mm wood, 30mm acrylic, metal, glass, leather, etc

LONGER RAY5  10W
10W Laser Power

0.06x0.06mm Laser Spot

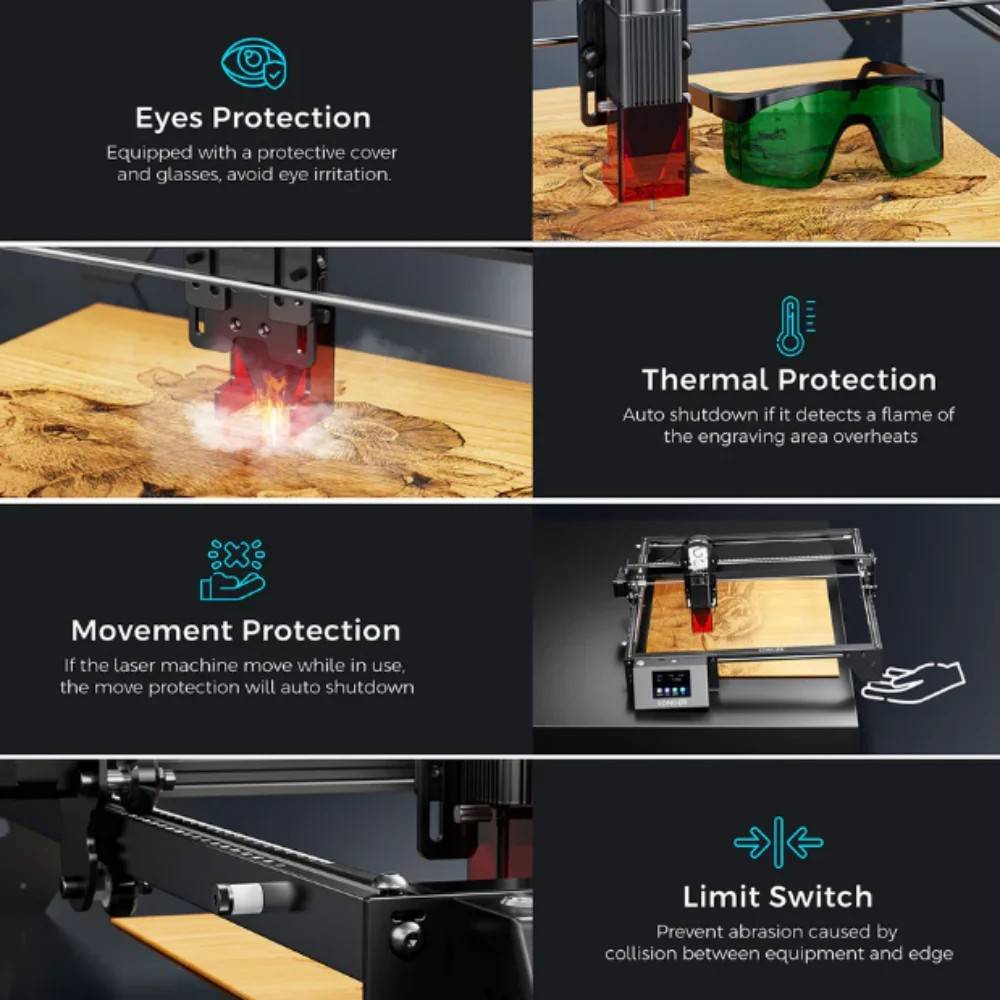

5 Safety Protections

Touch screen + WiFi

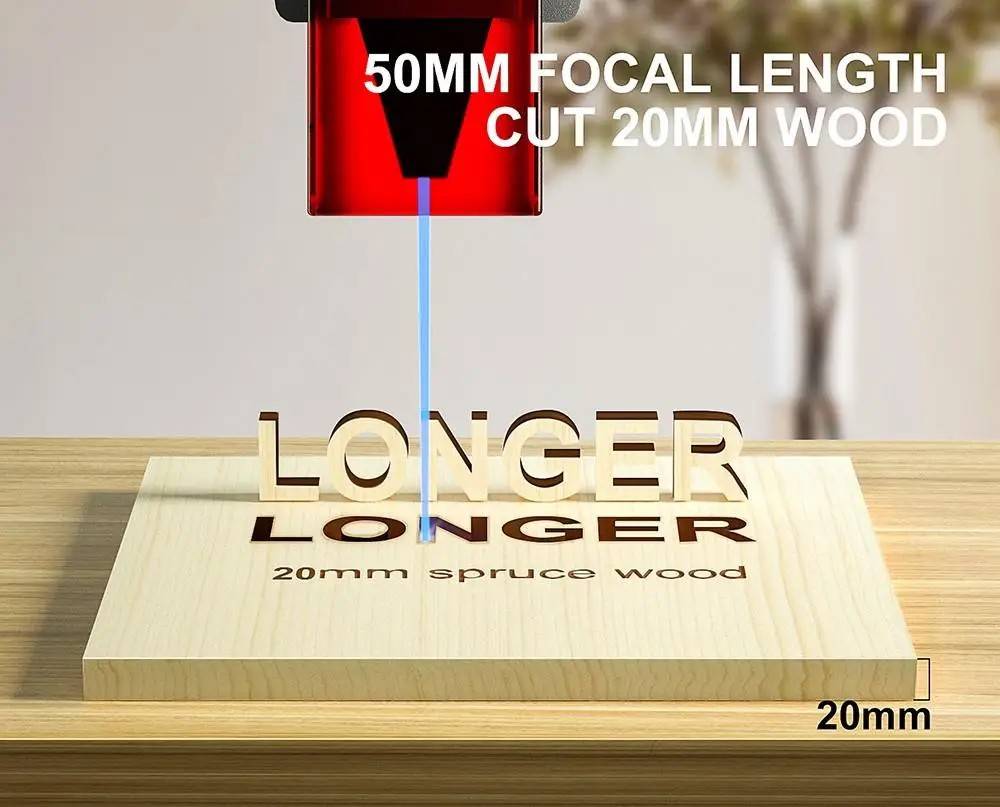

50MM FOCAL LENGTH CUT 20MM WOOD

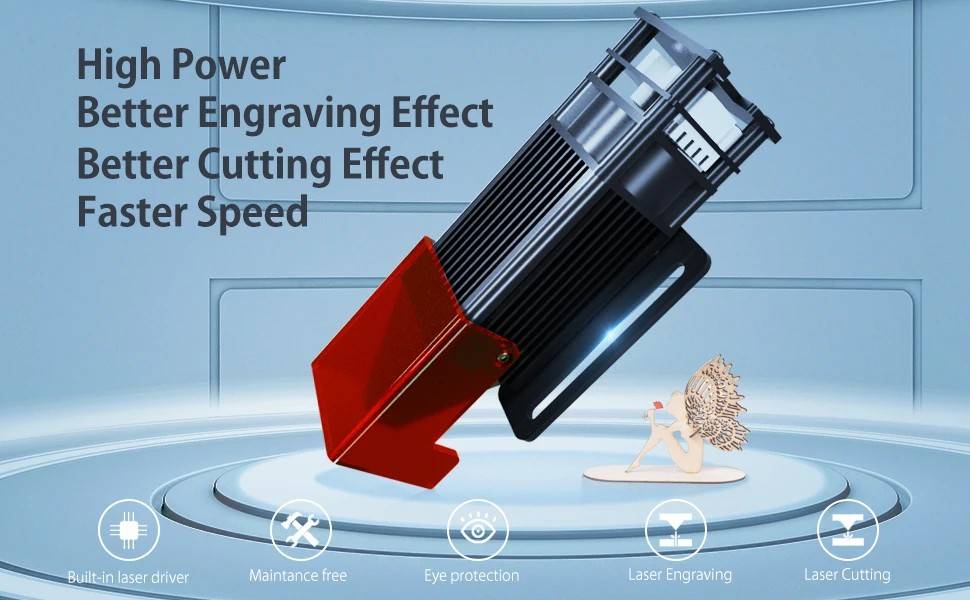

High Power
Better Engraving Effect
Better Cutting Effect
Faster Speed

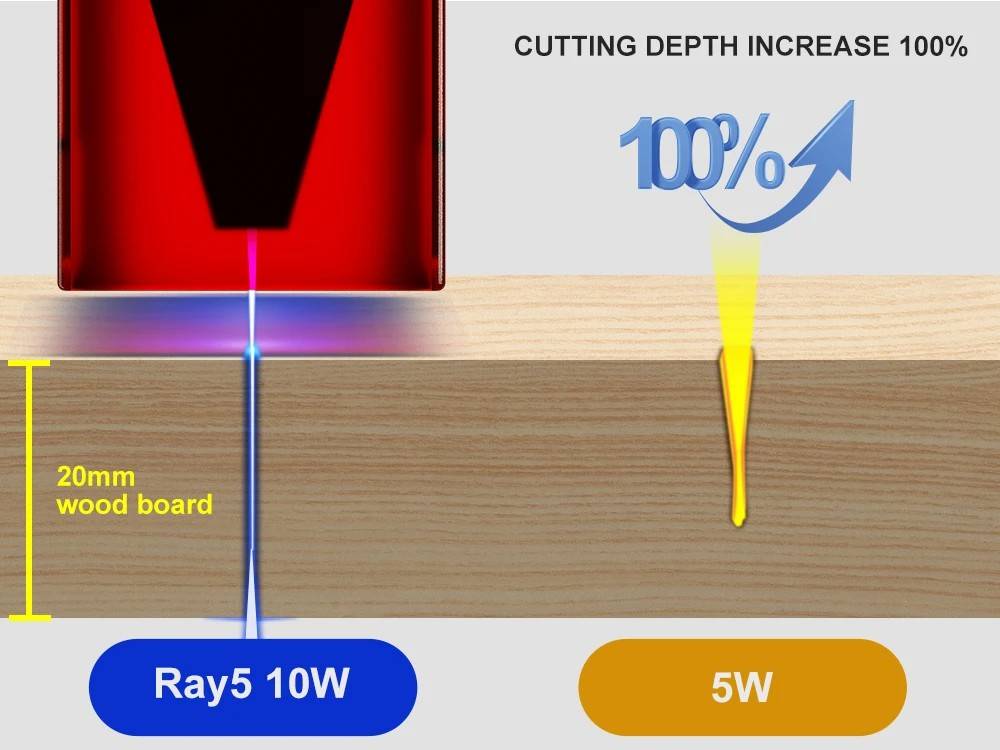

10w & 5w Comparison:

10W's cutting ablity is stronger than 5w, which can cut wood up to 20mm, acrylic 30mm.

Ultra-fine Laser Spot :

1.Compressed laser technology;

2.0.06*0.06mm2 Laser Spot.

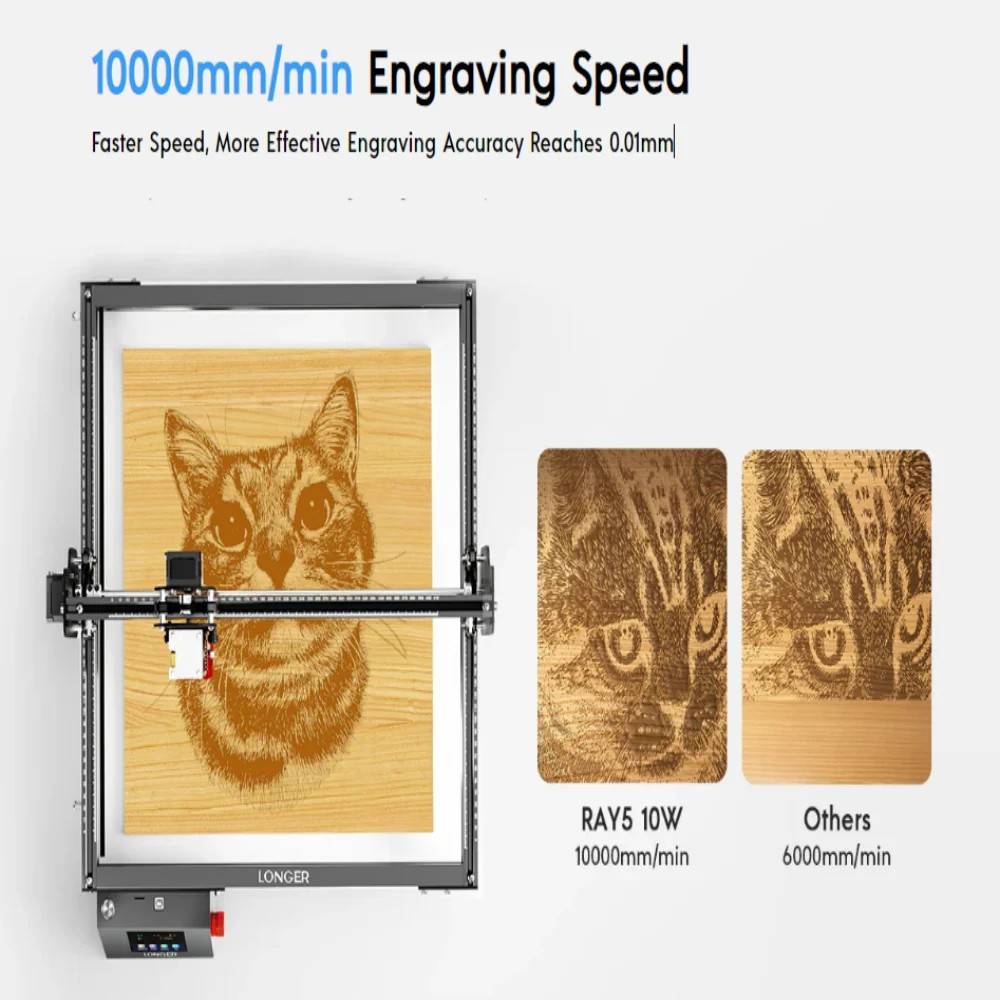

1000mm/min Engraving Speed
Faster Speed,More Effective Engraving Accuracy Reaches0.01mm

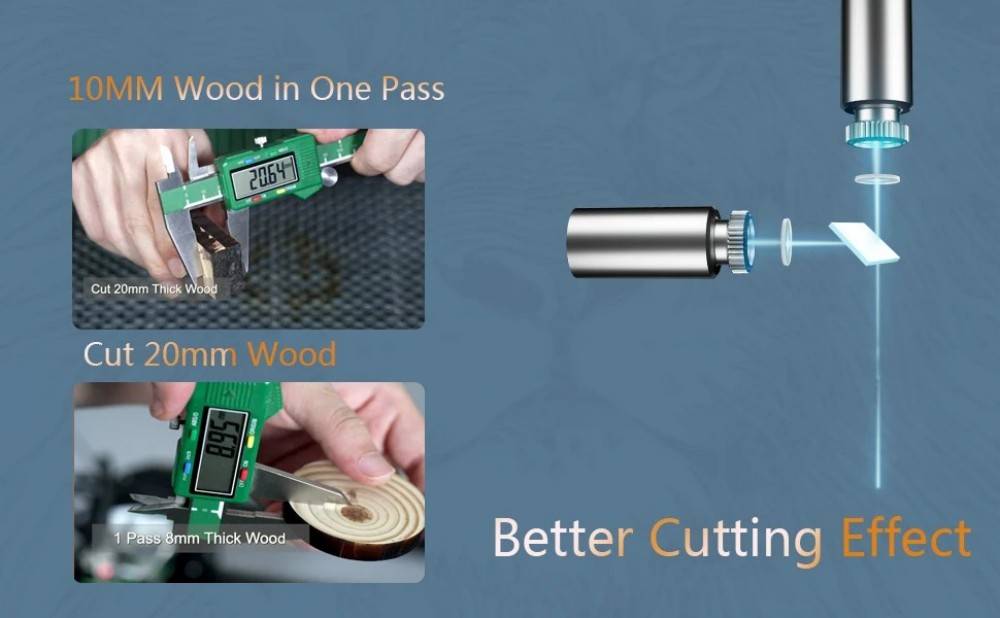

Powerful Cutting:

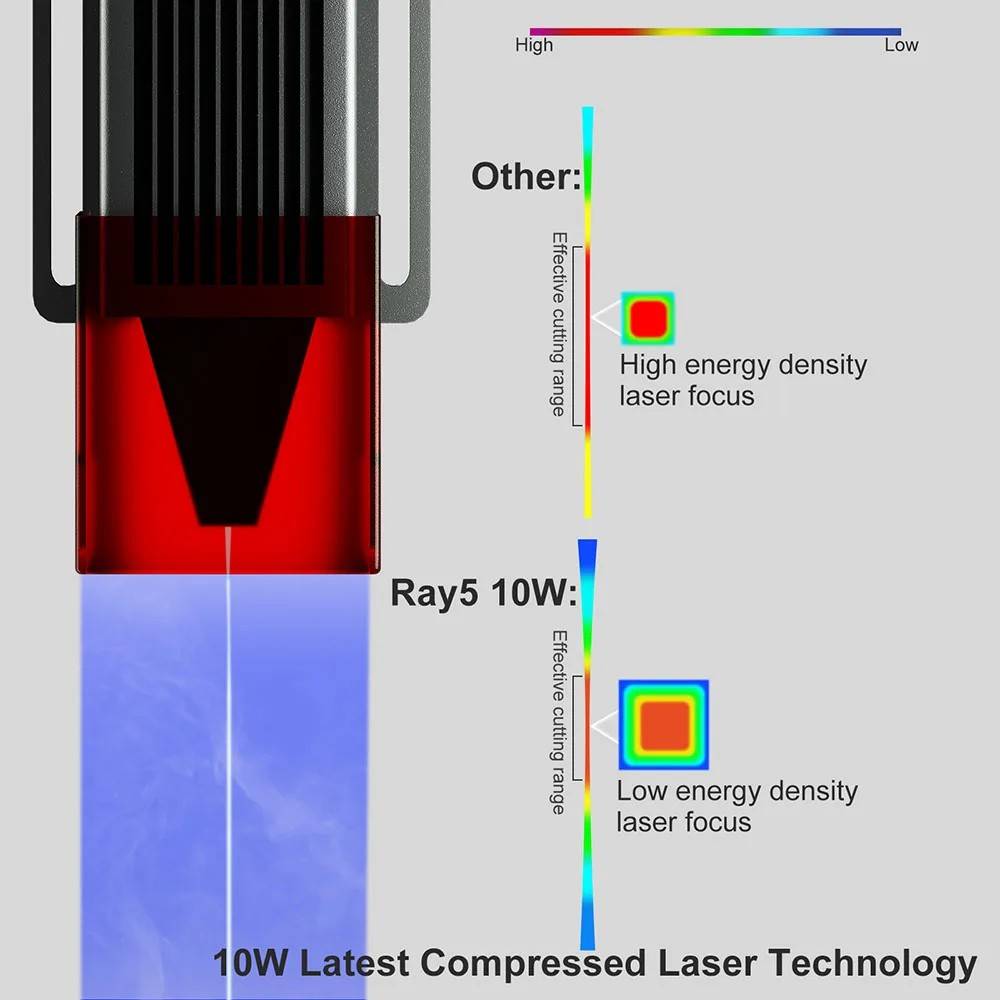

The 10W laser head adopts compressed double beam technology:

the new technology makes the laser power larger, the spot (0.06mm) and the laser beam are finer, the laser focal length is longer (50mm),

and the energy Higher density, stronger cutting ability, can easily cut 20mm pine board.

Multiple Machines Control

One computer controls multiple laser engravers.

The Ray5 10w can work parallelly with control of only one terminal, you can set a number of units engraving and cutting together and improve the production efficiency.

Customer Feedback:
Stable EngravingStable structure design could engrave well when run in max speed.The lines are smooth and clear, and produces less sawtooth.

Wide Applicable Materials :
Support engraving materials： All wood, paper, plastic, leather, PCB board, aluminum oxide,

non-reflective plating, and lacquered metal. Support cutting materials：

Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board. (Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer.)
