LONGER RAY5 20W Laser Engraver Touch Screen 32-bit Chipset WIFI 0.08*0.1mm Laser Spot Engraving Cutting Machine Area 375*375mm

Specifications
Model Number Ray5：20W
Laser Technology：Dioser Technology
Working Area :375x375mm(14.76x14.76inch)
Laser Wavelength：450-460nm
Focal Length :Fixed Focus-40mm
Laser Spot Size :0.08x0.10mm
Optical Output Power :18-21W
Power Max Consumption :120W
Engraver Output :DC24V 5A
Engraver Input :AC110-240V
Z Axis-Height Range :Up to 47mm
Fastest Working Speed :Speed 10000mm/min
Software :LaserGRBL LightBurn
Input Image Format：JPG,PNG,BMP,GIF,SVG,Al,etc.
Connection :type USB TF Card Wifi
limit switches:Yes
Air assist interface:Yes
Laser Engraver Size:610×67×200mm(24.02×26.38×7.87inch)
Packaging Size:621×347×127mm (24.45×13.66×5 inch)

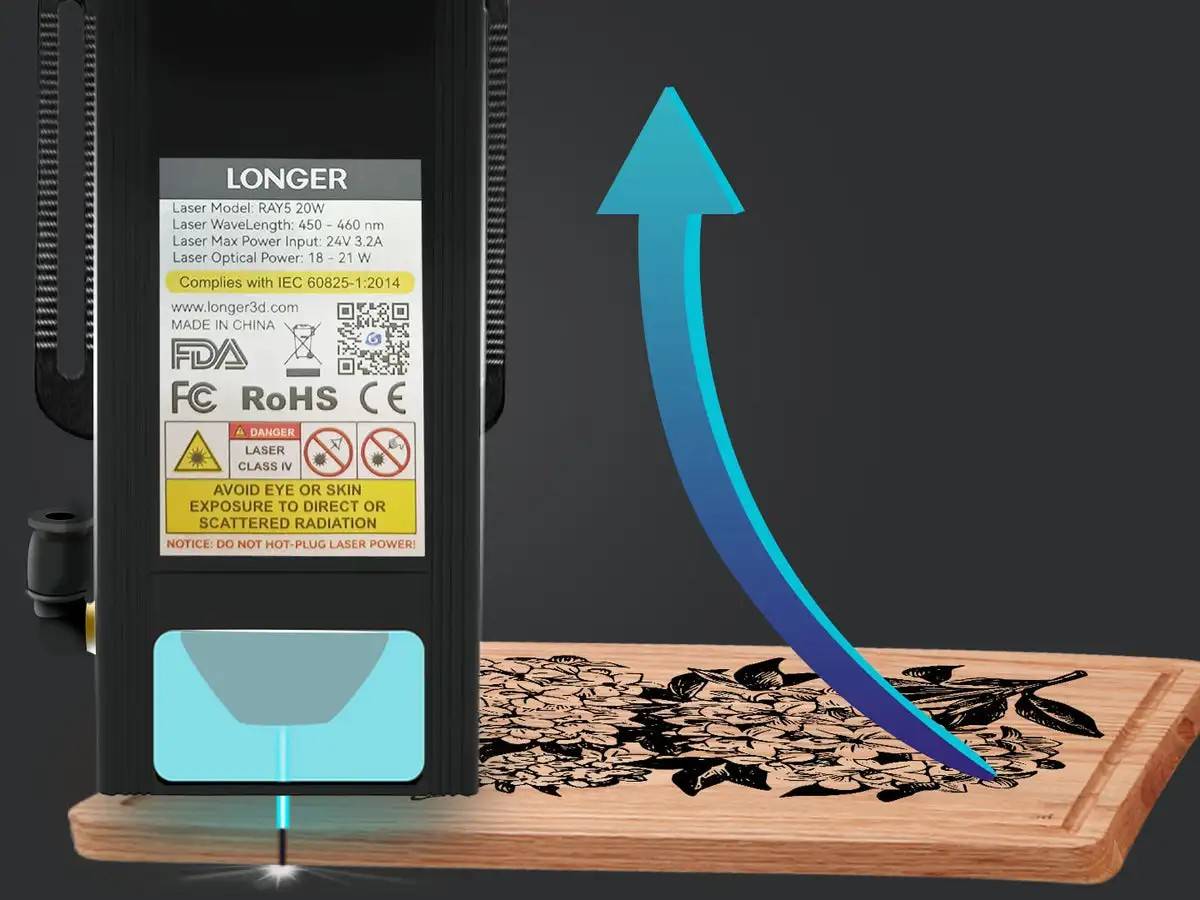

20W Powerful Cutting
The 22-24W optical output laser modules largely boosts the cutting capacity of the Ray5.
It cuts through 25mm wood and 35mm acrylic by multiple passes,
and cut 0.002"/0.05mm stainless steel.

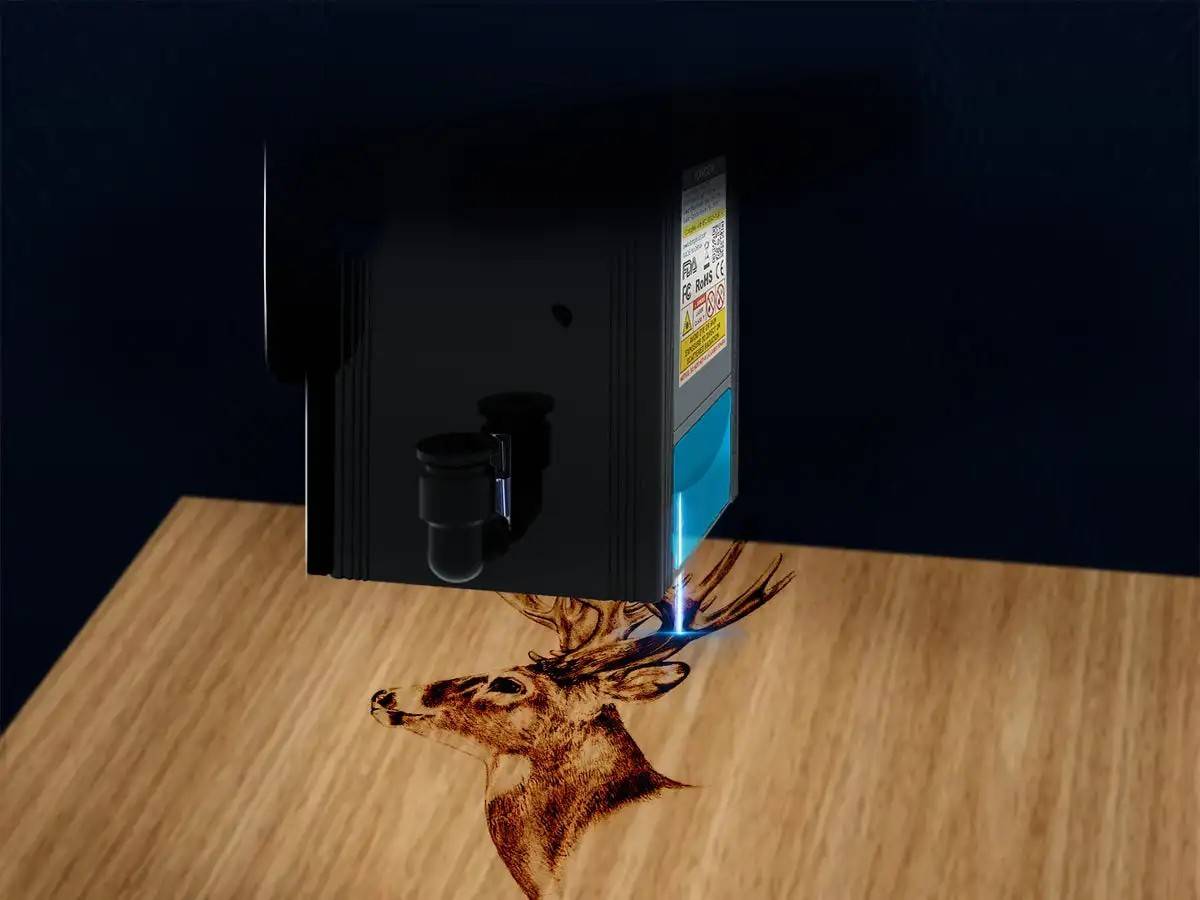

Higher Accuracy Cutting & 0.08*0.1mm² High Accuracy Laser Spot
The Ray5 is equipped with an ultra-fine 0.08 x 0.1mm focus point,
producing thinner lines, clearer texture, and more precise artwork .

More Productivity
More power leads to faster engraving and cutting, and a wider variety of materials that you can use.
Ideal for professional work, workshops, or factories .

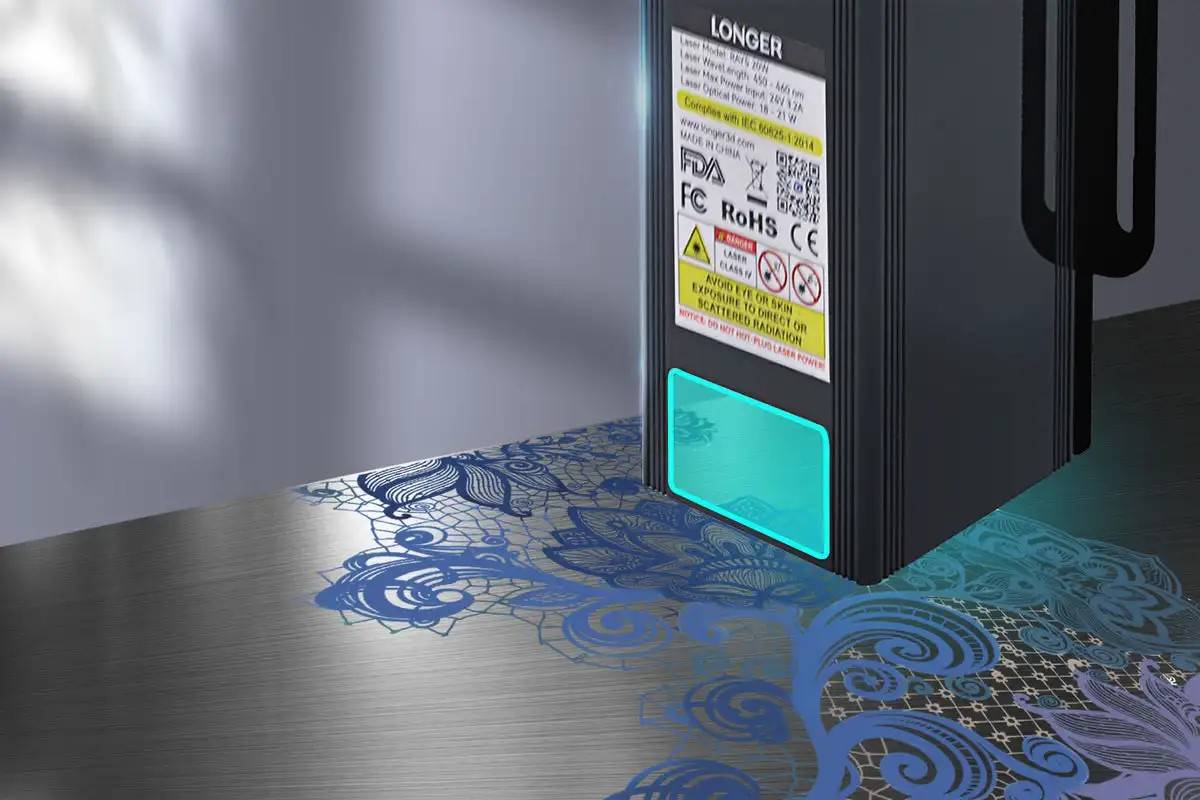

Multi-Color Engraving
The 22-24W laser instantly oxidizes metal, bringing vibrant colors to fulfill your creative needs.

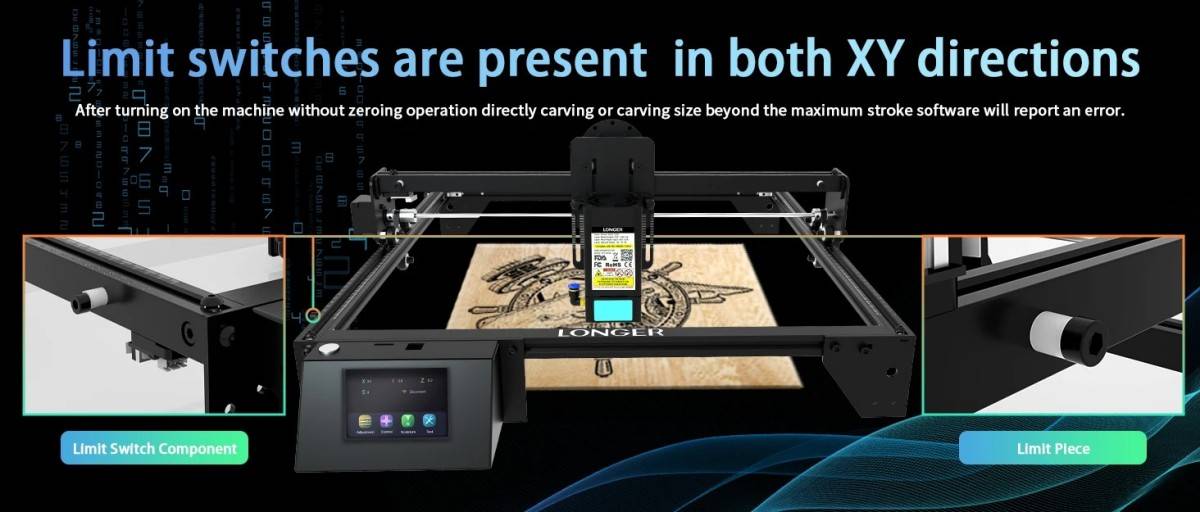

X/Y-axis Limit Switches
Limit switches can accurately locate the position of the laser module,
allowing for a safety feature where the Ray5 will trigger an alarm if it detects the laser is moving in the wrong direction.

Safety Measures
Installed Move/Thermal/Offline/Motionless/Eye Protections.

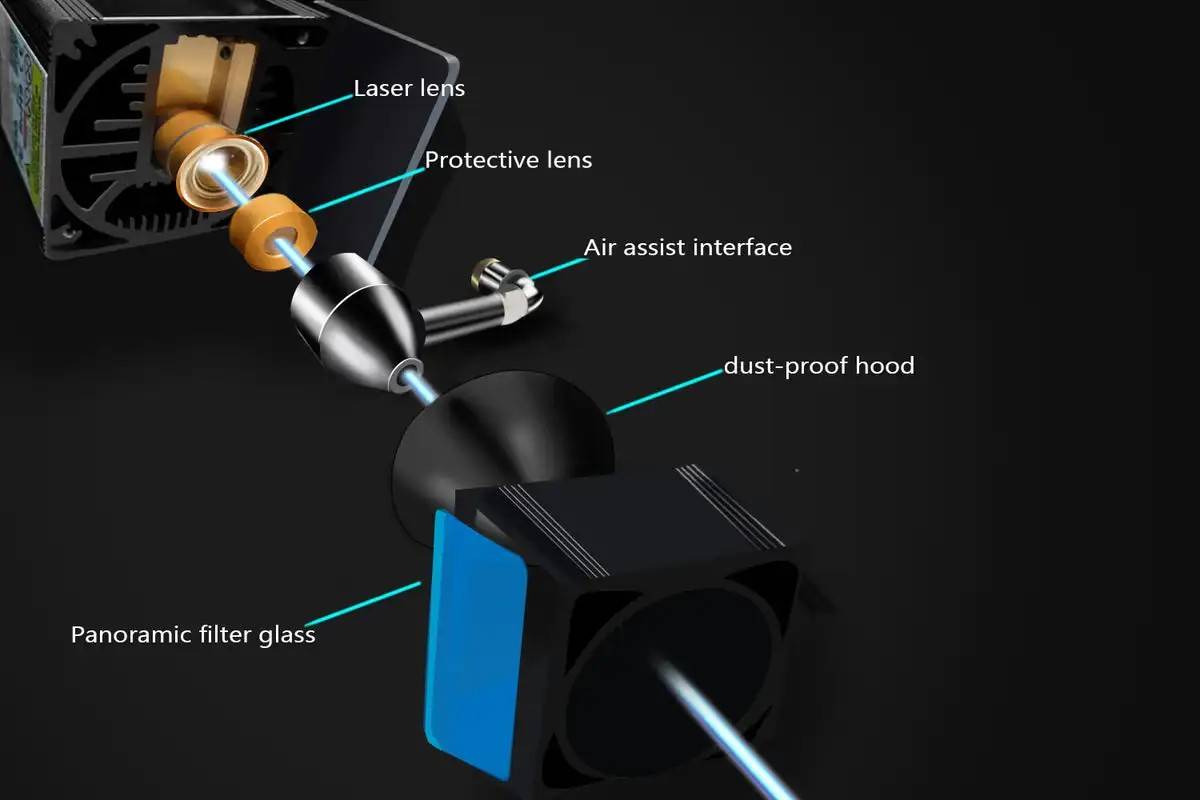

Laser Lens Protection
The 22-24W model is equipped with a replaceable lens and dust-proof hood which prevents smoke from polluting the lens.

Data Transfer Methods

Supports Wi-Fi, USB, APP and TF cards. The Ray5 is not limited to a physical computer connection.

Multiple Machines Control
The Ray5 can work either with one terminal, or can be set to work parallel with other units to improve production efficiency.

Wide Compatibility
Compatible with LaserGRBL, LightBurn and supports Windows 7+, macOS, and Linux.Supported file formats: JPG, PNG, BMP, G- code, GIF, SVG, NC, GC, etc.

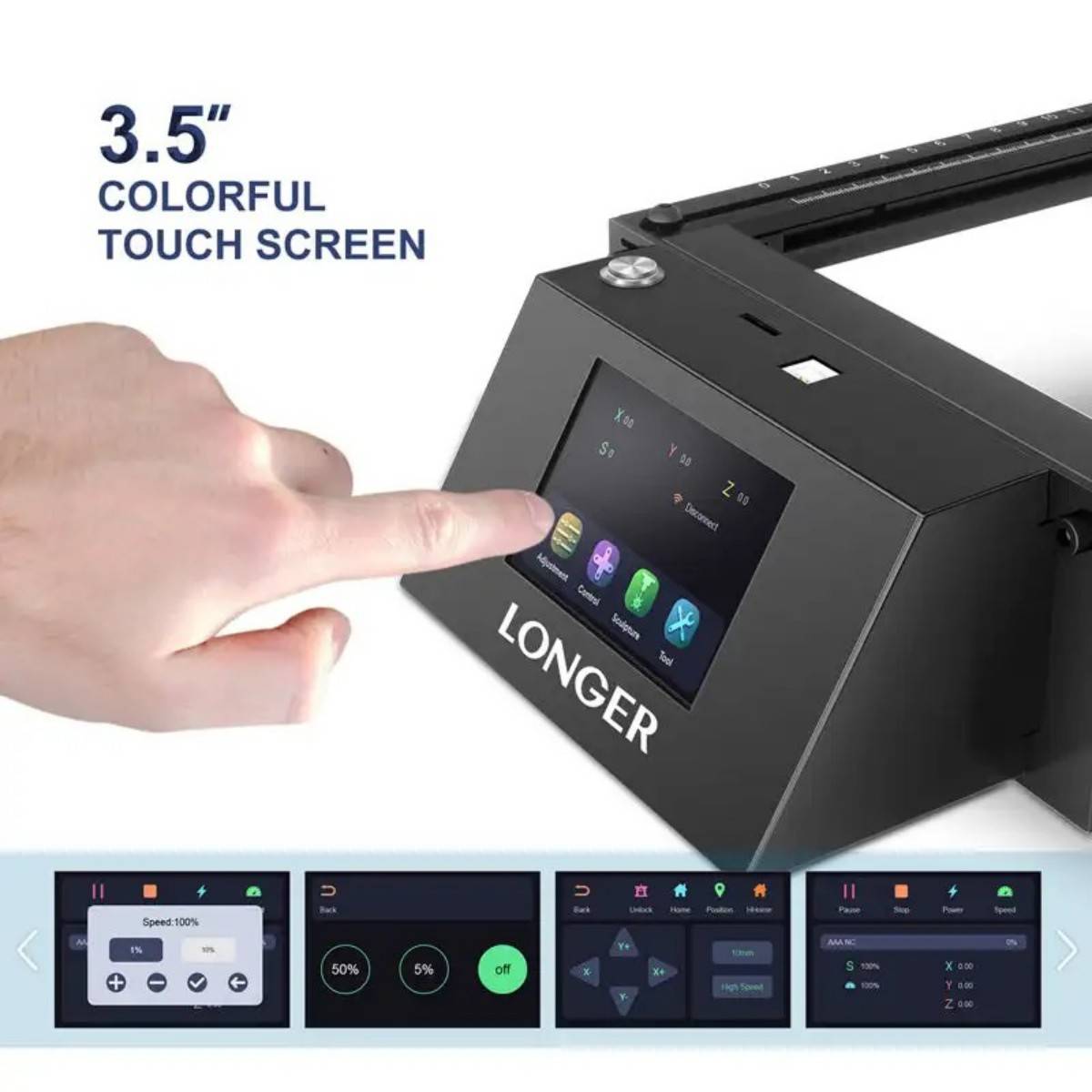

3.5” Touch Screen
With a 3.5” touch screen which doesn’t require a wireless connection while engraving and cutting.

Adjustable Focus Plate
The focus plate is easy to adjust, and is equipped with a 1mm pitch scale to precisely adjust the focal length according to the thickness of the material

32-Bit Chipset
The Ray5 is equipped with a ESP32 chipset, running at 240M Hz, allowing it to run faster and more powerfully compared to machines with a generic 8-bit chipset.

Wide Applicable Materials :
Support engraving materials： All wood, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating, and lacquered metal. Support cutting materials：

Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board. (Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer.)
