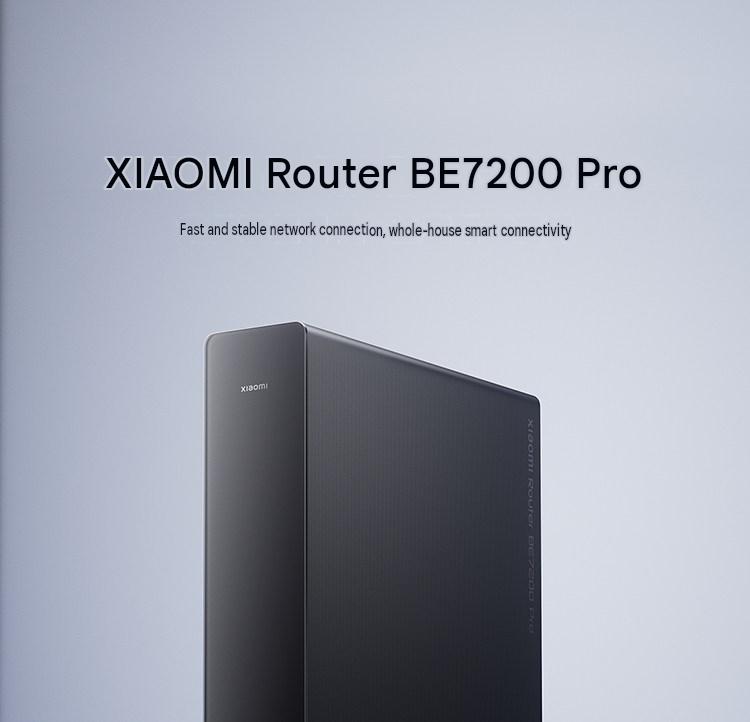

CN Version Xiaomi Router BE7200 Pro

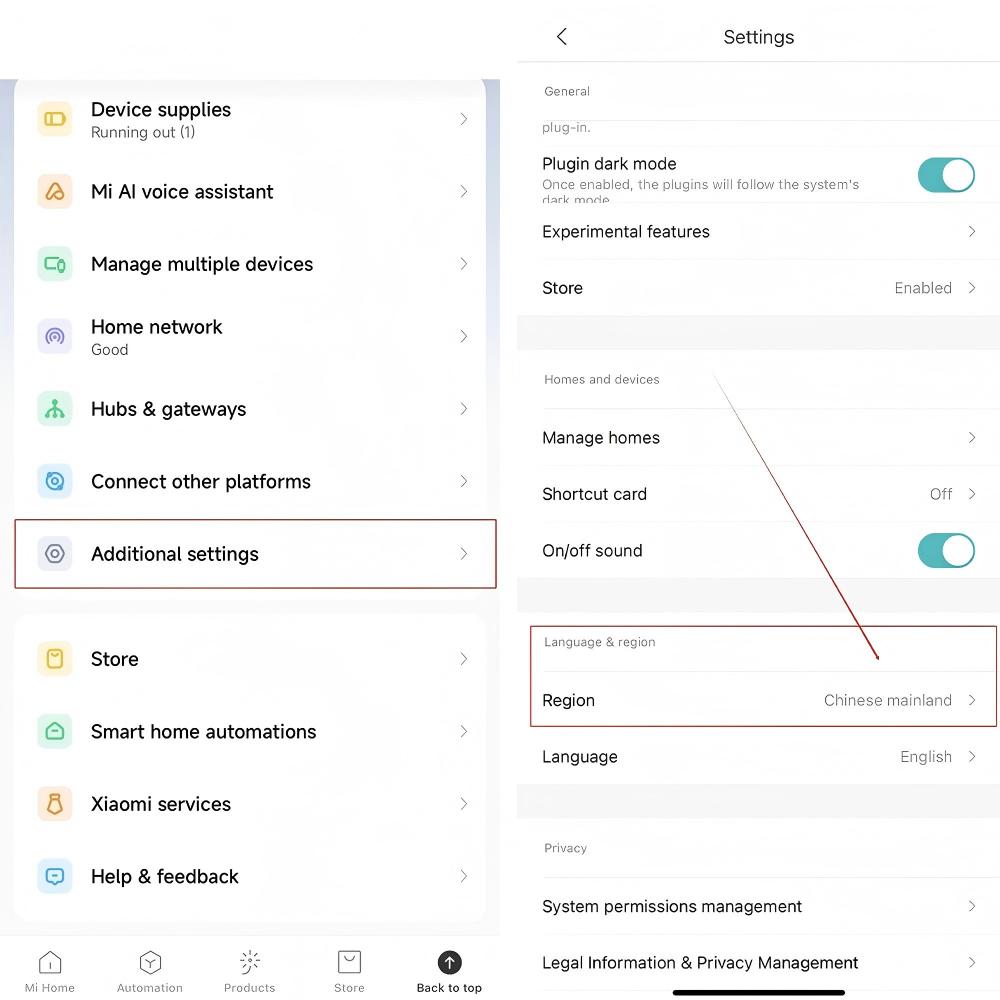

NOTE: This product version is for the China region. When adding Router, please select the Chinese server in the Mi home settings.

How to connect to Mi Home App:

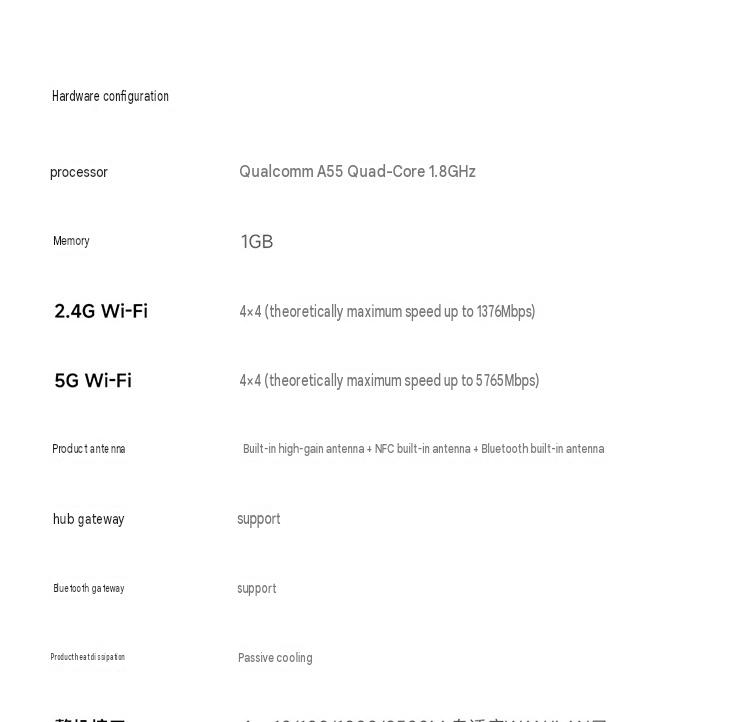

Product Parameters

Processor: Qualcomm A55 4-Core 1.8GHz
RAM: 1GB

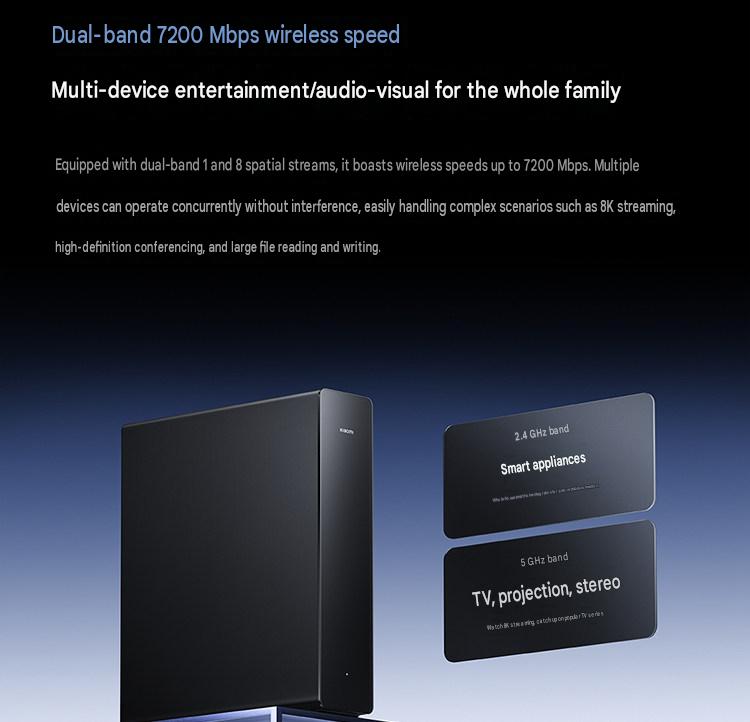

2.4G Wi-Fi: 4 x 4, theoretical maximum speed up to 1376Mbps
5.2G Wi-Fi: 4 x 4, theoretical maximum speed up to 5765Mbps

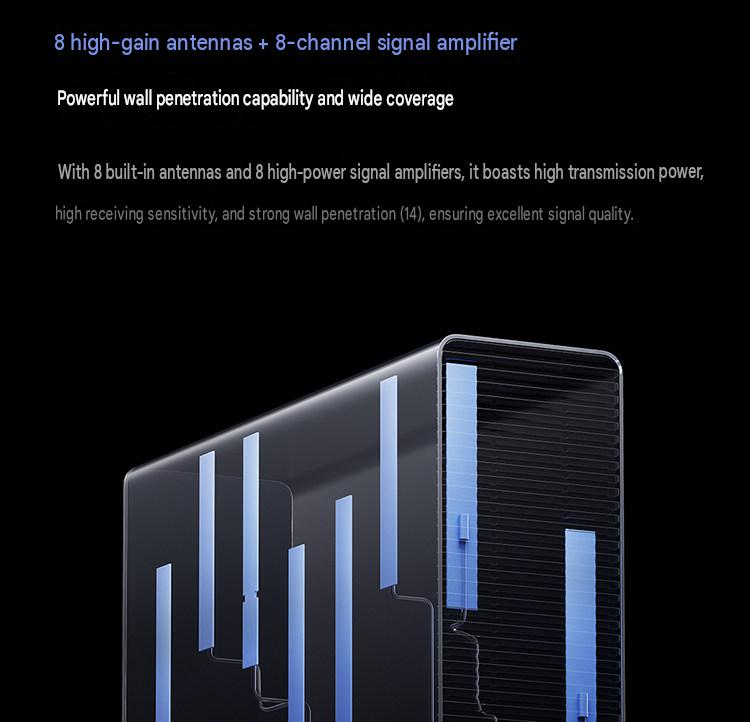

Antenna: Built-in high-gain antenna + Built-in NFC antenna + Built-in Bluetooth antenna

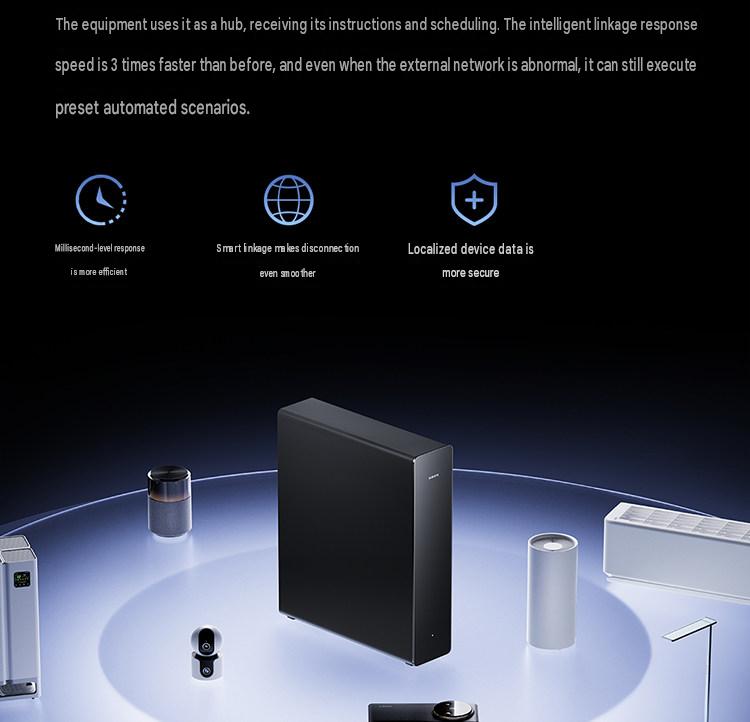

Central Gateway: Supported
Bluetooth Gateway: Supported

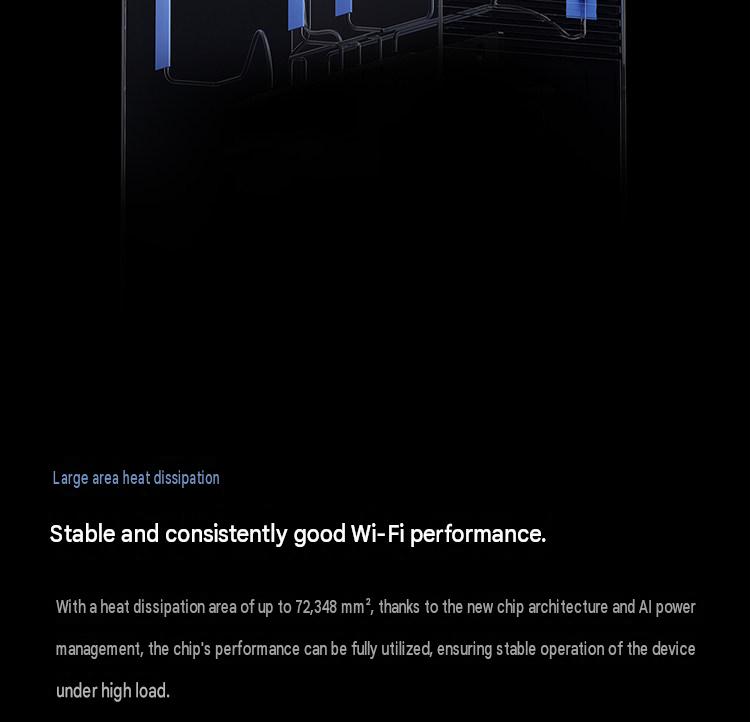

Cooling: Passive cooling

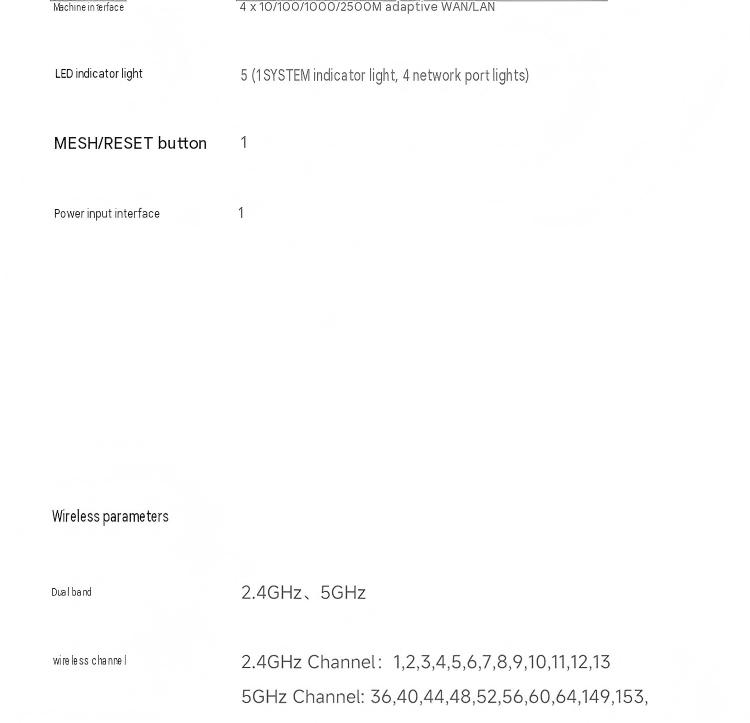

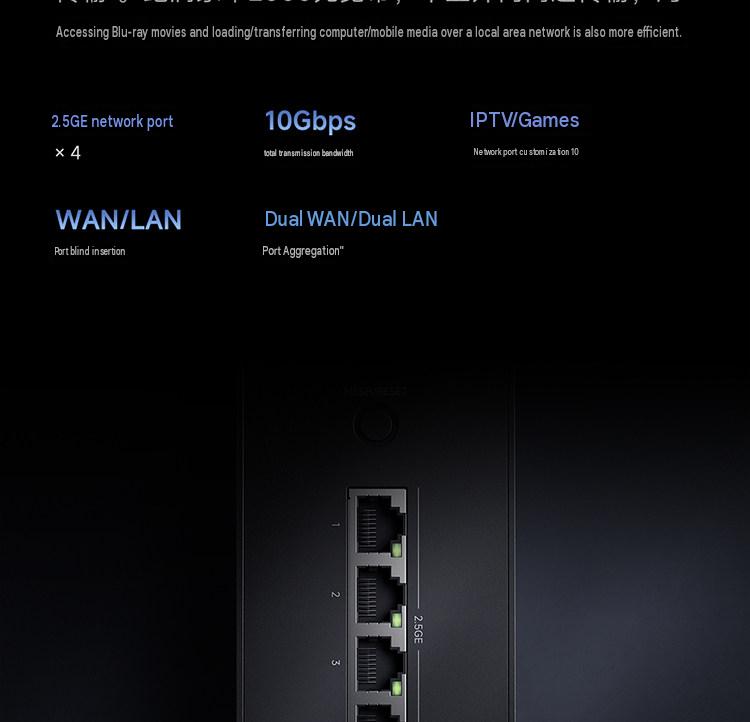

System Interfaces: 4 x 10/100/1000/2500M auto-sensing WAN/LAN ports
LED Indicators: 5 (System indicator x 1, Network port indicators x 4)
MESH/RESET Button: 1
Power Input Interface: 1

Wireless Parameters
Dual Band: 2.4GHz / 5GHz
2.4GHz Channels: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
5GHz Channels: 36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161, 165

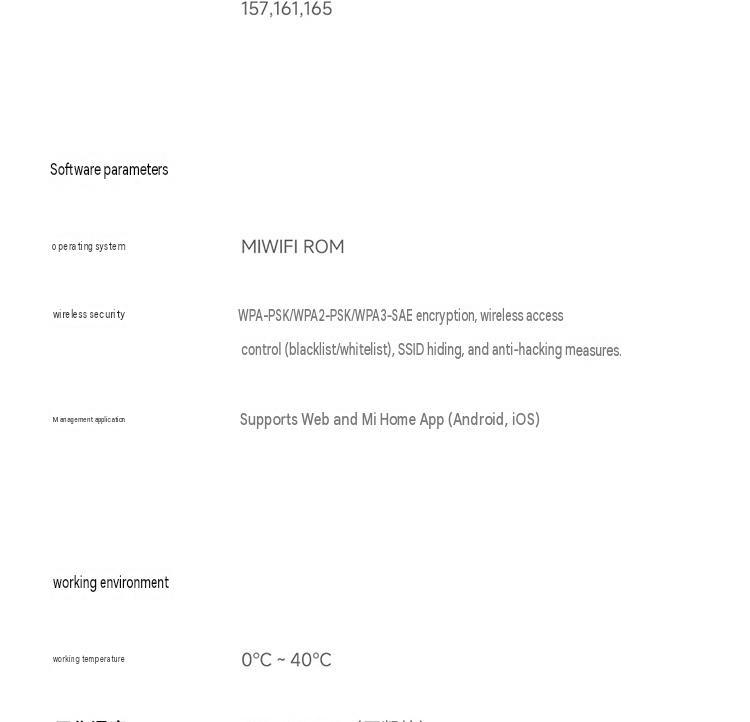

Software Parameters
Operating System: MiWiFi ROM
Wireless Security: WPA-PSK / WPA2-PSK / WPA3-SAE encryption, wireless access control (black and white list), SSID hiding, anti-piggybacking
Management Applications: Supports Web, Mi Home APP (Android, iOS)

Working Environment
Operating Temperature: 0°C ~ 40°C
Operating Humidity: 10% - 90% RH (non-condensing)
Storage Temperature: -40°C ~ 70°C
Storage Humidity: 5% - 90% RH (non-condensing)

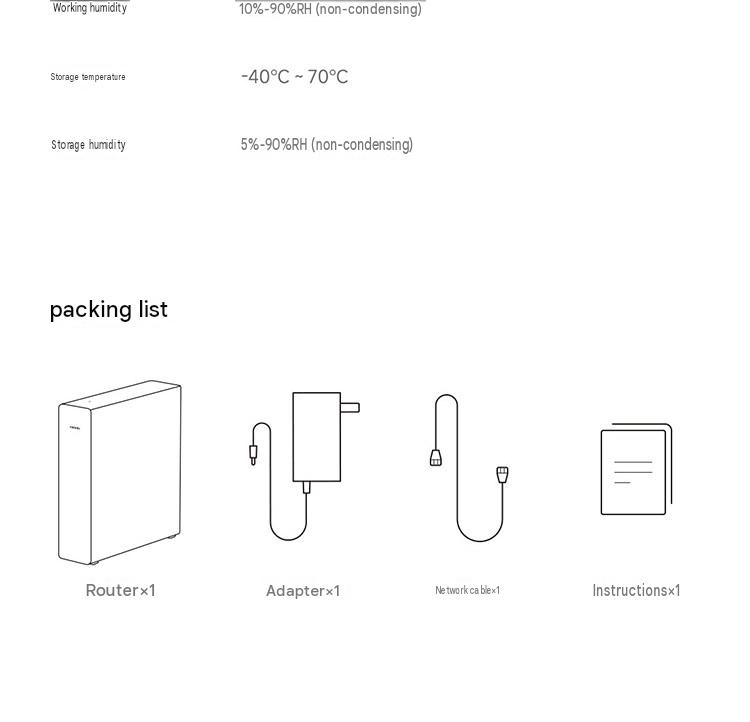

Package Contents:
1* Router BE7200 Pro
1* Power Adapter (CN Version) Includes extra EU adapter plug
1 Network Cable
1* User Manual
