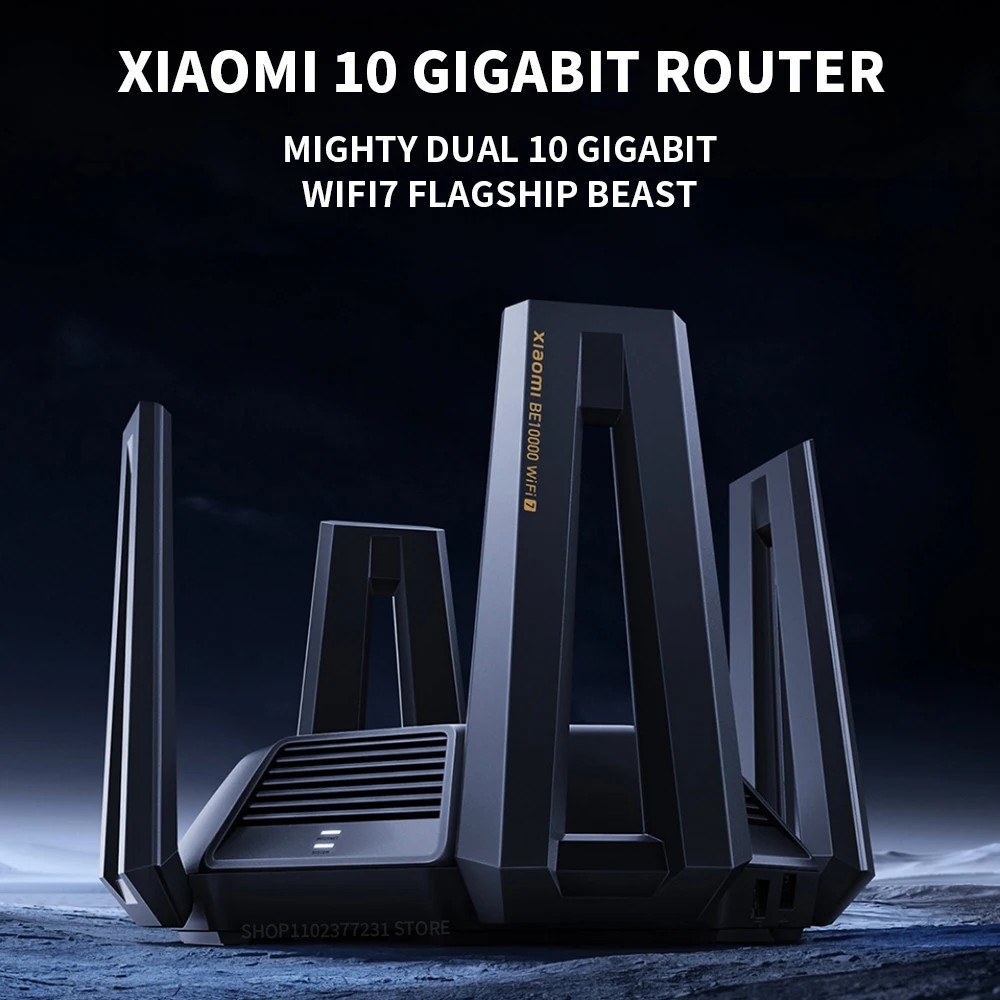

CN Version XIAOMI 10 Gigabit Router

Configuration

Product Name： XIAOMI 10 Gigabit Router
Processor：Qualcomm Quad-Core A73 2.2GHz
RAM：2GB
2.4G Wi-Fi：4×4 (Theoretical maximum speed up to 1376.4Mbps)
5.2G Wi-Fi：4×4 (Theoretical maximum speed up to 5764.8Mbps)
5.8G Wi-Fi：4×4 (Theoretical maximum speed up to 2882.4Mbps)
Antenna：External high-gain antennas + Built-in NFC antenna
Cooling：Active cooling
System Interfaces：4×10/100/1000/2500M auto-sensing WAN/LAN ports
1×10/100/1000/2500/5000/10000M auto-sensing WAN/LAN port
1×1000M/2500M/10000M SFP+ port
1×USB 3.0 port
LED Indicators：9 (SYSTEM indicator × 1, INTERNET indicator × 1, Network port indicators × 6, Ambient light × 1)
System Reset Button：1
Power Input Interface：1
Mesh Button：1

Wireless Parameters
Tri-Band：2.4GHz, 5.2GHz, 5.8GHz

Wireless Channels
2.4GHz Channels：1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
5.2GHz Channels：36, 40, 44, 48, 52, 56, 60, 64
5.8GHz Channels：149, 153, 157, 161, 165

Software Parameters
Wireless Security：WPA-PSK / WPA2-PSK / WPA3-SAE encryption, wireless access control (black and white list), SSID hiding, smart anti-piggybacking
Management Applications：Supports Web, Android, iOS

Working Environment
Operating Temperature：0°C - 40°C
Operating Humidity：10% - 90% RH (non-condensing)
Storage Temperature：-40°C - 70°C
Storage Humidity：5% - 90% RH (non-condensing)

Package Contents
Router × 1, Power Cable × 1, Network Cable × 1, User Manual × 1

NEXT GENERATION WIFI 7
NEW PROTOCOLS EVOLUTION AGAIN

10 GIGABIT WIRELESS RATE
8K STREAMING

10 GIGABIT WIRED TRANSMISSION
DUAL 10G PORTS
FOUR 2.5G PORTS

QUALCOMM ENTERPRISE PROCESSOR
4-CORE A73, 40,000+ POWER SURGE

*12-WAY SIGNAL AMPLIFIER
WHOLE HOUSE SIGNAL COVERAGE

2GB ULTRA-LARGE.MEMORY
1000+ DEVICE CONNECTIONS

NFC BUMPER TO BUMPER
ONE TOUCH OF YOUR PHONE AND YOU'RE IN THE NETWORK

ACCELERATION MULTI-PLATFORM GAME

FAMILY INTERNET PROTECTION
MANAGE APPS AND INTERNET DURATION

USB 3.0

CREATE A "LIGHT NAS' FOR FAMILY

SUPPORTS THE NEW GENERATION OF WIFI 7 PROTOCOL

FASTER,STRONGER,MORE STABLE

WiFi7 not only has higher speed and effectively improves throughput, but also has powerful features such as MLO multiplexing technology,

which can make full use of channel resources,reduce latency, improve anti-interference capability, and realize a great leap in entertainment and office network experience.

MLO MULTI-LINK TECHNOLOGY

A REVOLUTIONARY BREAKTHROUGH IN SUB-CONNECTIVITY

Dual band simultaneous connection

Concurrent data transmission, faster on faster

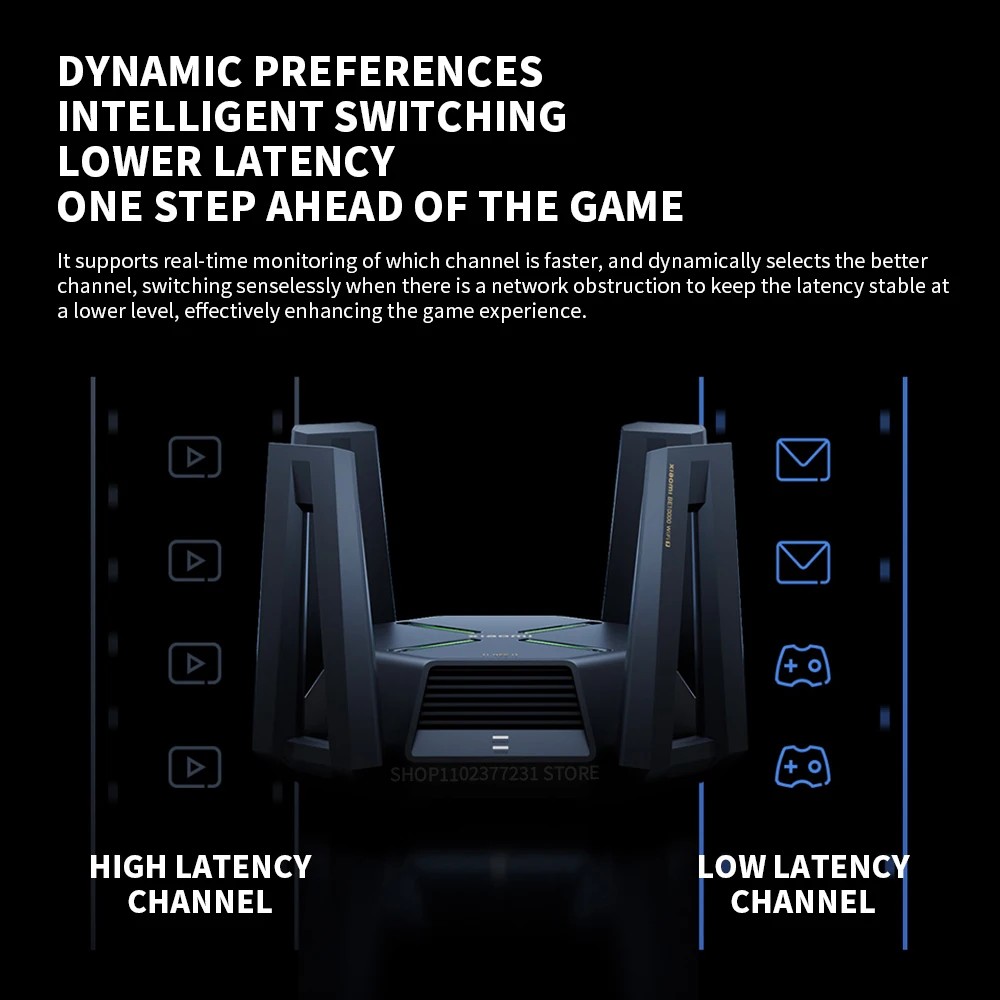

DYNAMIC PREFERENCES
INTELLIGENT SWITCHING
LOWER LATENCY
ONE STEP AHEAD OF THE GAME

MLO supports real-time monitoring of which channel is faster, and dynamically selects the better channel,
switching senselessly when there is a network obstruction to keep the latency stable at a lower level,
effectively enhancing the game experience.

Three bands, high speed concurrency

Compared to ordinary dual-band routers, tri-band routers not only offer higher network speeds. What's more,
it allows devices to be connected more smoothly. You can allocate the use of each band according to your habits,
and devices on different bands can be used separately without interfering with each other.

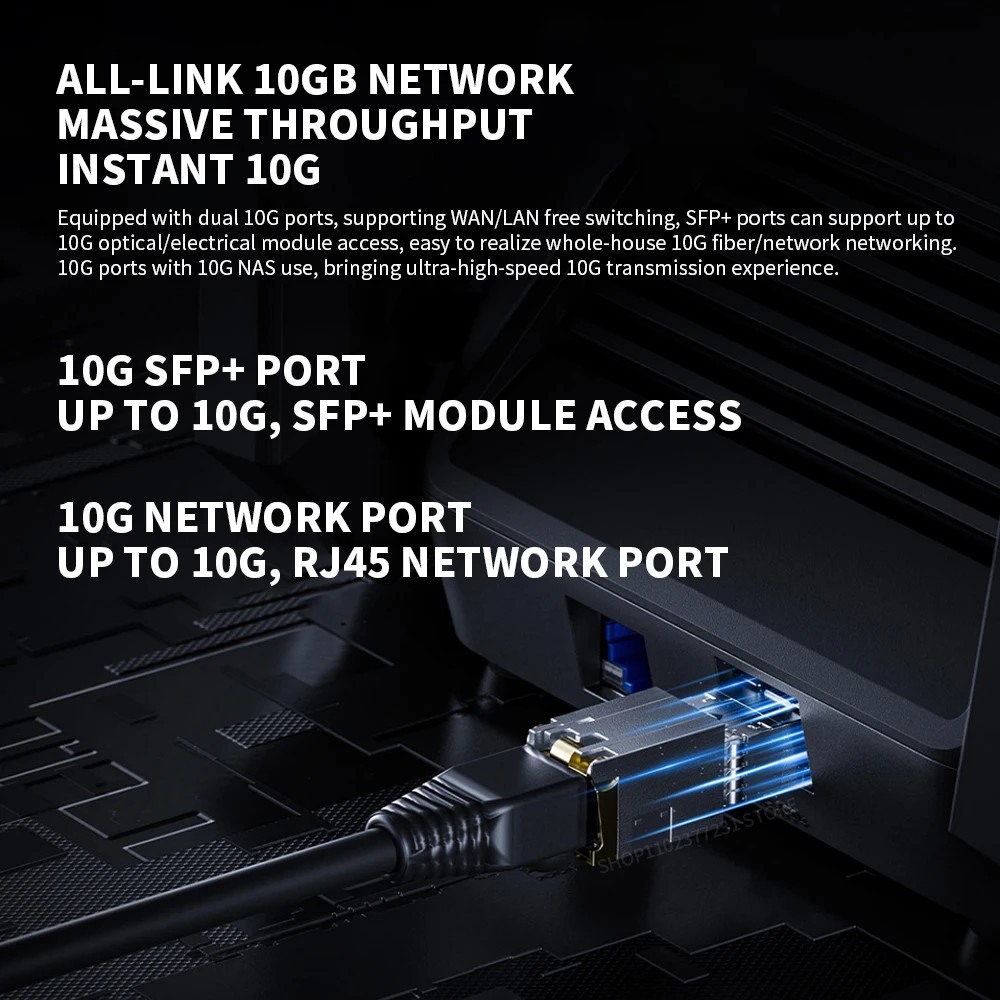

Full-link 10 Gigabit network

Equipped with dual 10G network ports, supporting WAN/LAN free switching, and SFP+ network port can support up to 10G optical/electrical module access.
Easy 10G network port with 10G NAS NAS The 10G network port can be used with 10G NAS to bring ultra-high-speed 10G transmission experience.

*SFP+ modules need to be purchased by yourself, for better experience, we recommend using models tested and approved by Xiaomi Labs, please contact our customer service for details.

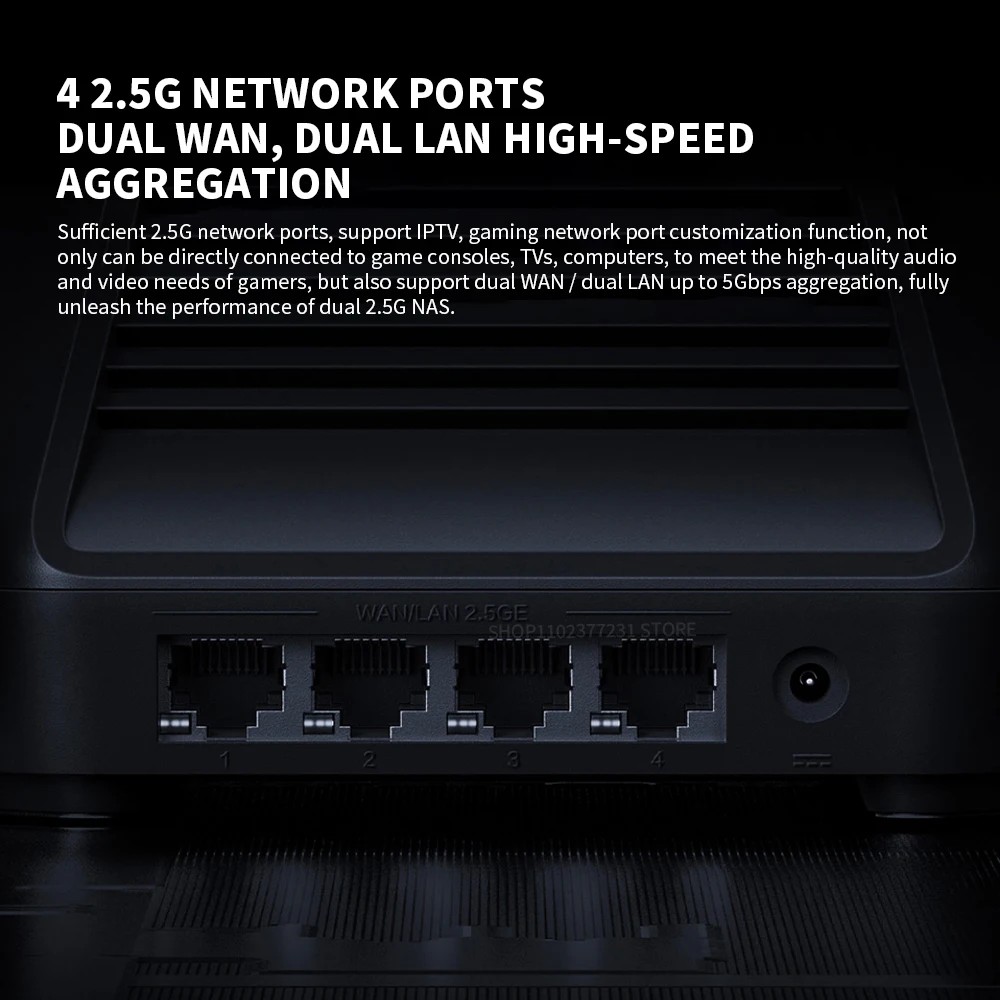

Four 2.5G ports with dual WAN and dual LAN high-speed aggregation

Ample 2.5G network ports, support IPTV, gaming network port customization function.
Both can be directly connected to game consoles, TVs, computer. meet gamers' high quality audio and video needs,

and also supports dual WAN/dual L AN up to 5Gbps aggregation, fully unlocking the performance of dual 2.5G NAS.

New generation Qualcomm Enterprise processor 4 core A73 with 40,000+ surging computing power

With Qualcomm's next-generation A73 architecture, the 4-core 2.2GHz processor unleashes over 40,000 computing power,

twice the performance of the previous generation flagship processor IPQ8074A (A53 4 cores 2.2GHz),

easily handling tens of gigabytes of data data transfer and multi-threaded task processing.

12-way high power signal amplifier, whole house signal Strong and stable

12 high gain antennas with 12 high power signal amplifiers increase signal transmission power while improving reception sensitivity.
Superb wall penetration through the wall, bringing a good signal throughout the house.

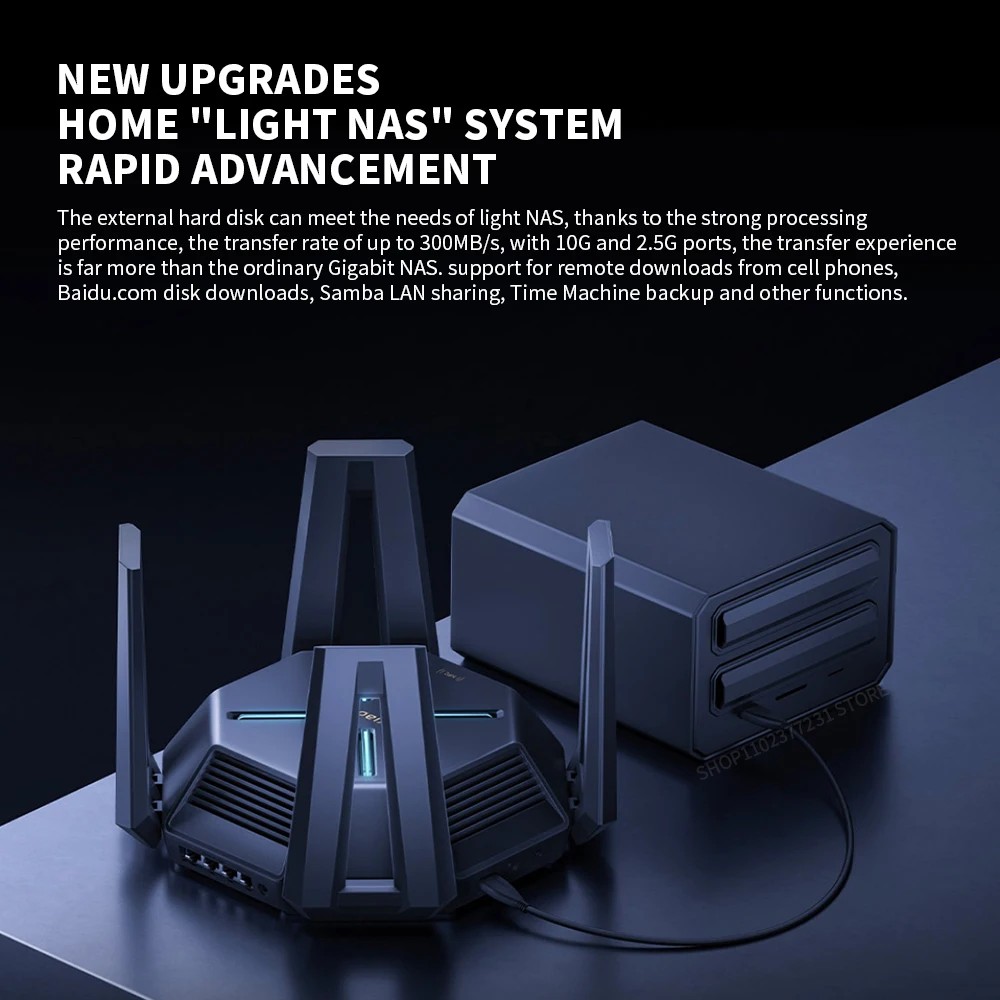

Newly upgraded home "Light NAS" system with USB3.0 version

External hard drives can be used to meet the needs of the Light NAS, and thanks to the powerful processing performance, the transfer rate can reach up to 300MB/s.
With 10G and 2.5G network ports, the transfer experience far exceeds that of ordinary gigabit NAS.

2GB super memory, supports Docker expansion

Stable access for up to 1000+ devices.

New support for Docker.Extra large cache space for 10 Gigabit data transfer and high-speed USB 3.0 transfer for more stable conditions.

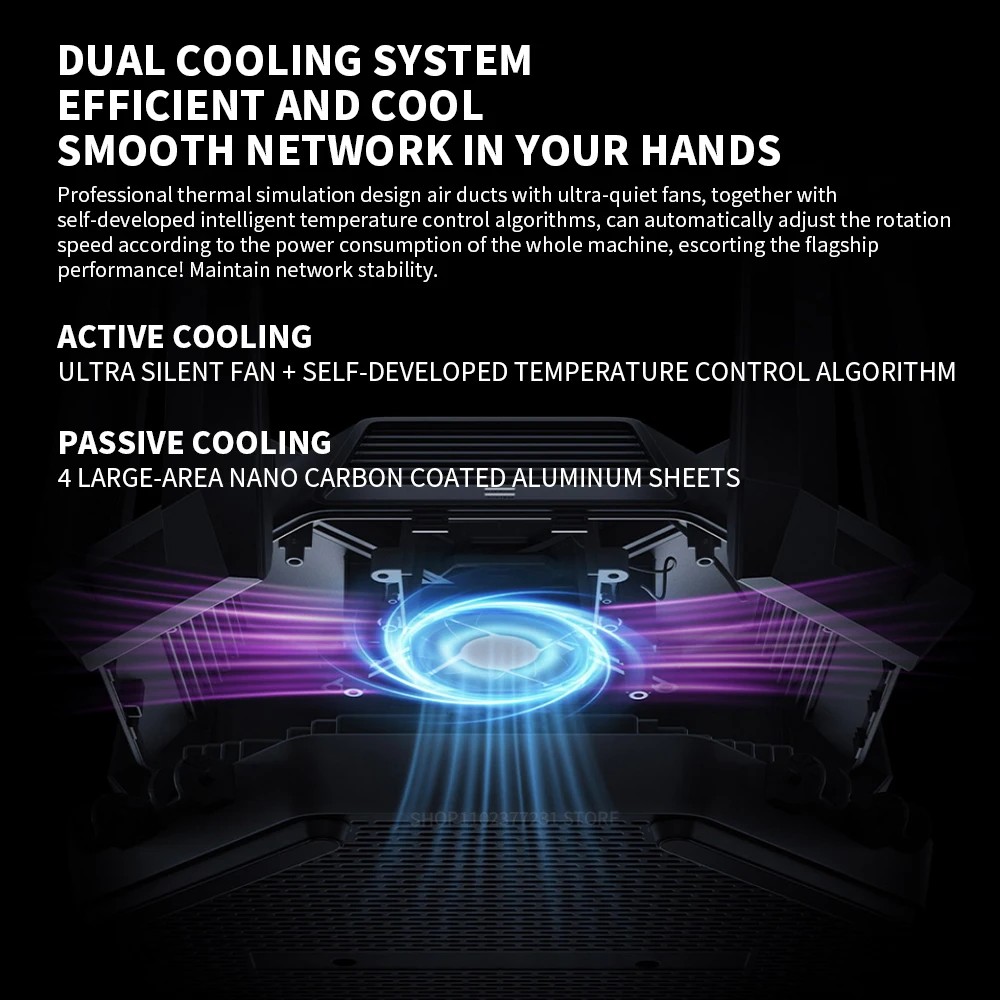

Dual cooling system

Professional thermal simulation design air ducts with ultra-quiet fans,
together with self-developed intelligent temperature control algorithm,
can automatically adjust the speed according to the power consumption of the whole machine,
to keep the network stable without lag.

Active cooling: ultra-silent fan + self-developed temperature control algorithm
Passive cooling: 4 large-area nano-carbon coated aluminium sheets

MULTIPLE MESH NETWORKING
SIGNAL EXPANSION
COVERAGE OF LARGE HOUSEHOLDS

With multiple backhaul bands, the rate of wireless mesh is greatly improved,
supporting up to 10 devices for networking,
easily solving the signal coverage problems of villas, large flats and other large households.

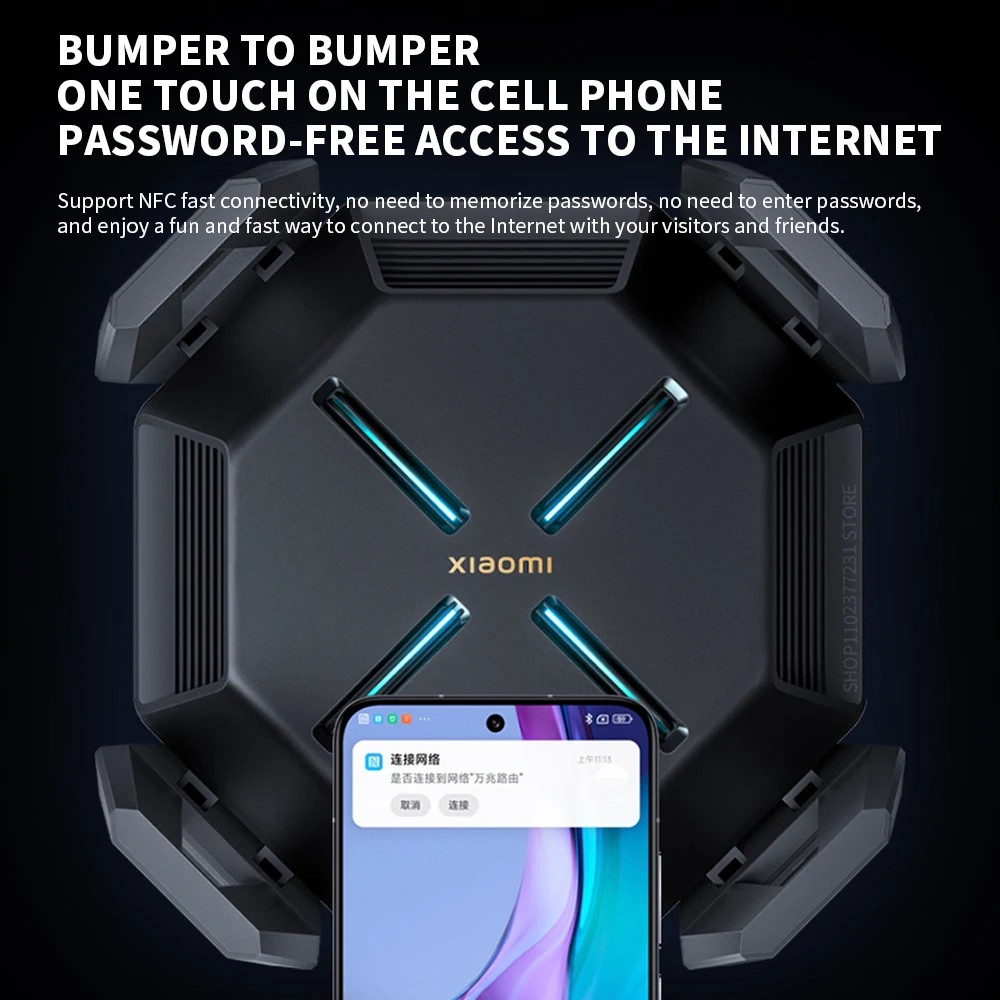

Support NFC one-touch connection, password-free network connection

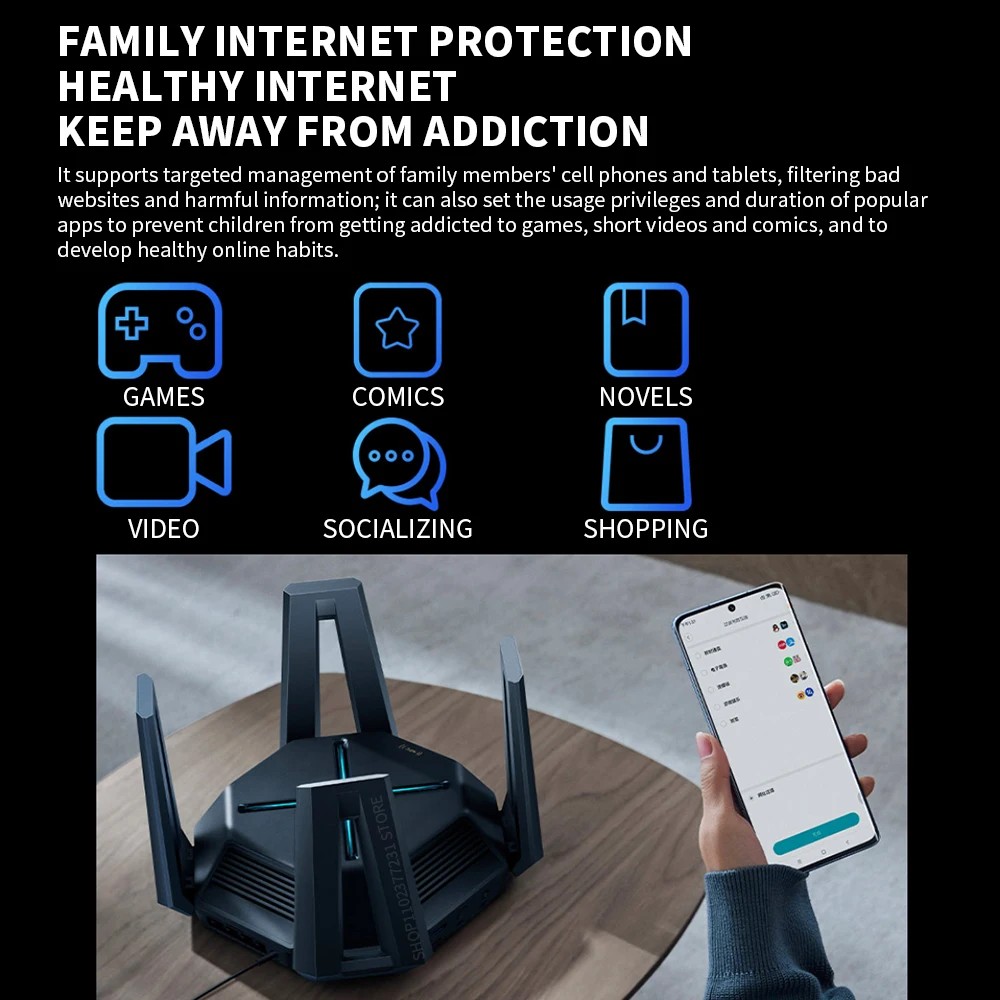

Family Internet Protection, Healthy Internet

Supports targeted management of your family's mobile phones and tablets.
filtering of undesirable websites and harmful information, as well as the ability to set permissions and hours of use for popular apps.
You can also set the permissions and length of use of popular apps to prevent your children from getting addicted to games, short videos and comics.
It also allows you to set the usage rights and duration of popular apps to prevent your children from getting addicted to games, short videos and comics, and to develop healthy online habits.

More Technical upport

*SUPPORTS HYBRID MESH
UP TO 10 DEVICES EASY MESH WITH ONE CLICK

*XIAOMICONNECTION
WHOLE HOUSE SMART DEVICES ONE KEY TO ACCESS THE NETWORK WITHOUT PASSWORD

*BEAMFORMING
AUTOMATIC DEVICE LOCATION DETECTION DIRECTIONAL SIGNAL ENHANCEMENT FOR WIDER COVERAGE

*IPV6
LARGER ADDRESS SPACE HIGHER FORWARDING EFFICIENCY

*BSS COLORING
REASONABLE ALGORITHM

OPTIMIZATION REDUCE INTERFERENCE BETWEEN DIFFERENT WIFI

*SECURITY CENTER
WIRELESS ACCESS CONTROL PREVENT MALICIOUS TERMINAL ACCESS
