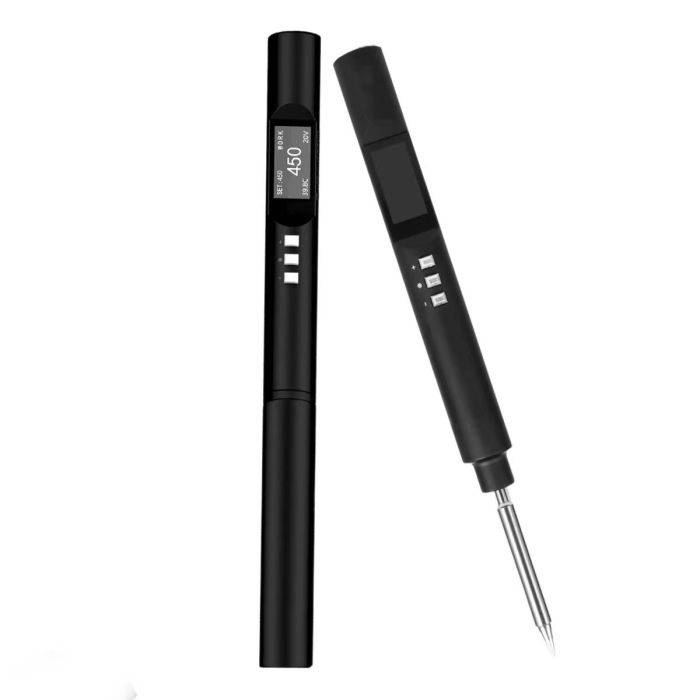

PTS200 V2 100W Electric Soldering Iron Portable Quick Warm-Up Tin Melting Open Source Supports PD3.0 Firmware Upgradeable Battery Not Included T12/TS100 Compatible

Features:

- Powerful and Portable: PTS200 V2 is a highly capable portable electric soldering iron with a maximum power output of 100W, offering desktop station-level performance in a compact size.

- Quick Heat-up: With just 8 seconds, it can reach a temperature of 450 degrees, enabling rapid tin melting for efficient soldering.

- Wide Compatibility: Supports PD3.0 and QC2.0 QC3.0 protocols, compatible with fast charging adapters, power banks, and DC power supply (DC to USB-C cable required).

- ESP32 MCU and Open-source Software: Utilizes ESP32 MCU and open-source software, allowing users to customize their firmware with continuous updates available.

- One-button Heating Mode: Simplifies the soldering process, making it easier and more efficient.

- Durable and Heat-dissipating Design: CNC metal body with ergonomic design ensures durability, reliability, and effective heat dissipation.

- OLED Display: Features a 0.96-inch OLED high-definition screen for clear and detailed information.

- Precision Gyroscope and Sleep Function: Built-in precision gyroscope enables high sensitivity automatic sleep function for power-saving.

Versatile Compatibility: Compatible with T12/TS100/TS101 heating cores using different fasteners, providing convenient usability.

- Customizable Settings: Users can name the soldering head and calibrate temperature curves using the multi-segment calibration function.

- Adjustable Inspiration Level and Sleep Time: Offers adjustable inspiration level for awakening the machine and sleep time settings.

- Large Font Mode and Language Support: Supports large font mode and easy switching between Chinese and English.

Specifications:

Screen: 0.96 inch OLED

Power and Data Interface: TYPE-C

Total Length (with TS welding head): 188mm

Total Length (with T12 welding head): 232mm

Weight: About 48g

Maximum Output Power: 100W (depending on power supply)

Temperature Control Range: 50-450 degrees

Temperature Stability: ±5%

Soldering Iron Head Resistance: 4 Ω (customized heating core)

PD Input Voltage: 9V 2A/12V 1.5A/15V 3A/20V 5A

Package Included:

1 x PTS200 V2 Soldering Iron with Metal Protection Cap

1 x Fastener for T12 Heating Core

2 x Insulating Sheath

1 x 100W Heating Element
