Global version xiaomi smart projector L1

Specifications

Name：Xiaomi Smart Projector L1
Processor：MT9630 high-performance chip platform
Built-in Storage：2 GB DDR3/16 GB eMMC
System：Android TV™ OS
Mirroring Display：Google Cast
Bluetooth：Bluetooth 5.0
Wireless Connectivity：Wi-Fi IEEE 802.11 a/b/g/n/ac 2.4 GHz/5 GHz
Audio Effects：Dolby Audio
Speaker：3W full-range × 2
Display
Display Technology：LCD
Brightness：200 ISO 流明
Resolution：1920 x 1080P
Throw Ratio：1.2:1
Screen Dimensions：40"～120"(Recommend: 60"-100")
Focus：Auto Focus
Keystone Correction：Auto Keystone Correction
Intelligent Obstacle Avoidance：Support
Intelligent Screen Alignment：Support
Projection Method：Forward, Side, Overhead (15°)

Electrical
Rated power：≤ 72.0W
Standby Power：≤ 0.50W
Auto power off：Support
Input：19.0V ⎓ 3.79A
Noise：≤ 30 dB(A) (Theater mode at an ambient temperature of 25°C)
Storage Temperature/Humidity：-20℃ 至 55℃  ≤ 90%RH
Operating Temperature/Humidity：0℃ 至 40℃ / 20%RH–80%RH

Stunning Visuals
Fully-sealed optical engine
Durable with fine picture quality

The fully-sealed optical engine adopts a high-definition optical lens featuring excellent light transmission, projecting clearer images with high colour accuracy to reproduce the true artistic beauty of films.

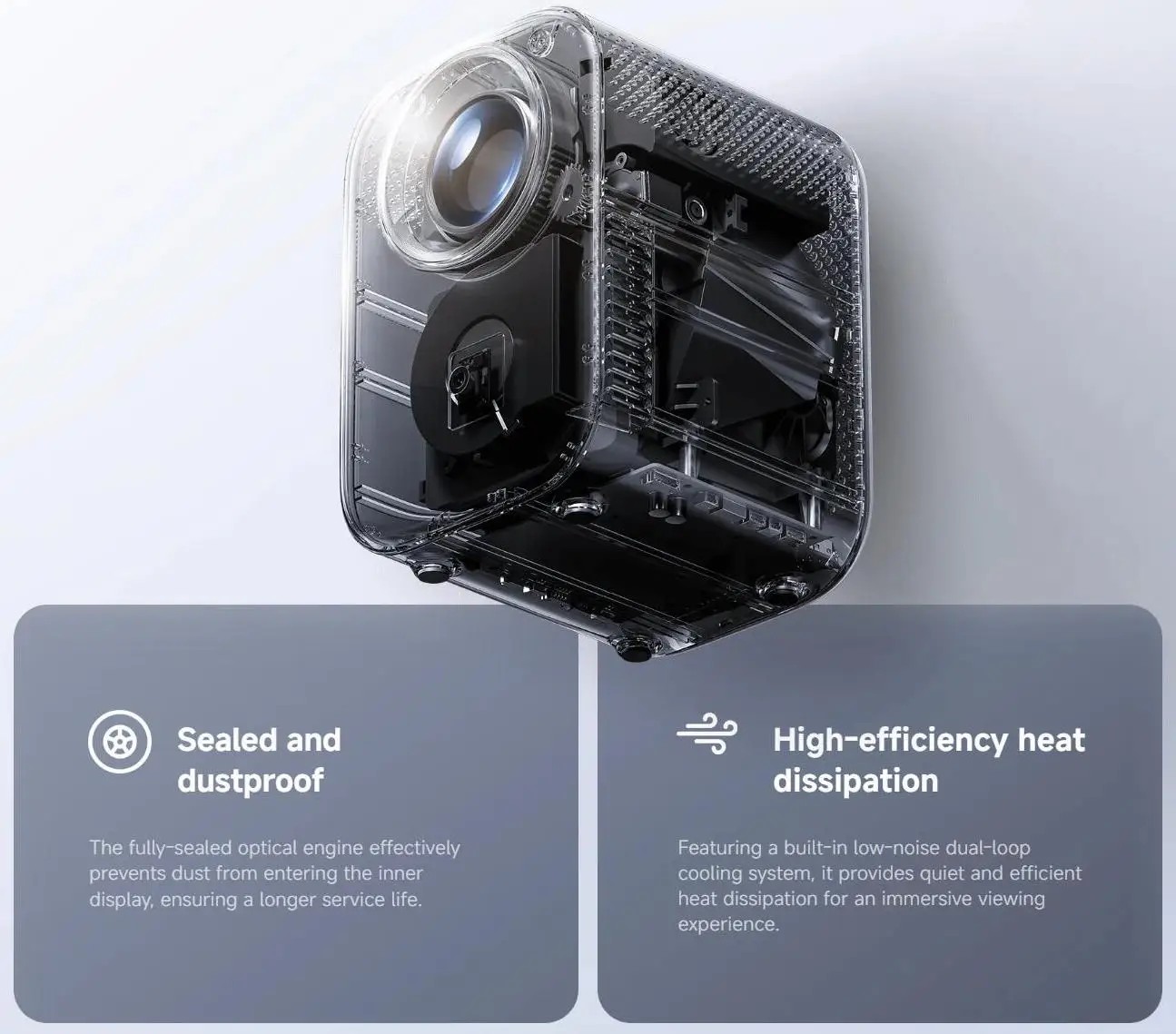

Sealed and dustproof
The fully-sealed optical engine effectively prevents dust from entering the inner display, ensuring a longer service life.

High-efficiency heat dissipation
Featuring a built-in low-noise dual-loop cooling system, it provides quiet and efficient heat dissipation for an immersive viewing experience.

200 ISO Lumens
Accurate brightness representation

With SGS international standard luminous flux efficiency certification*, it boasts a brightness of up to 200 ISO Lumens, ensuring accurate brightness representation and more visible details.

1080p physical resolution
Higher definition for a better experience

Featuring 1080p HD resolution with support for 4K video playback with crystal-clear images.

20-inch ultra-wide screen
Ultra-immersive viewing experience

With a 1.2:1 throw ratio, you can project a large screen ranging from 40 to 120 inches anytime, anywhere.

Environment Adaption

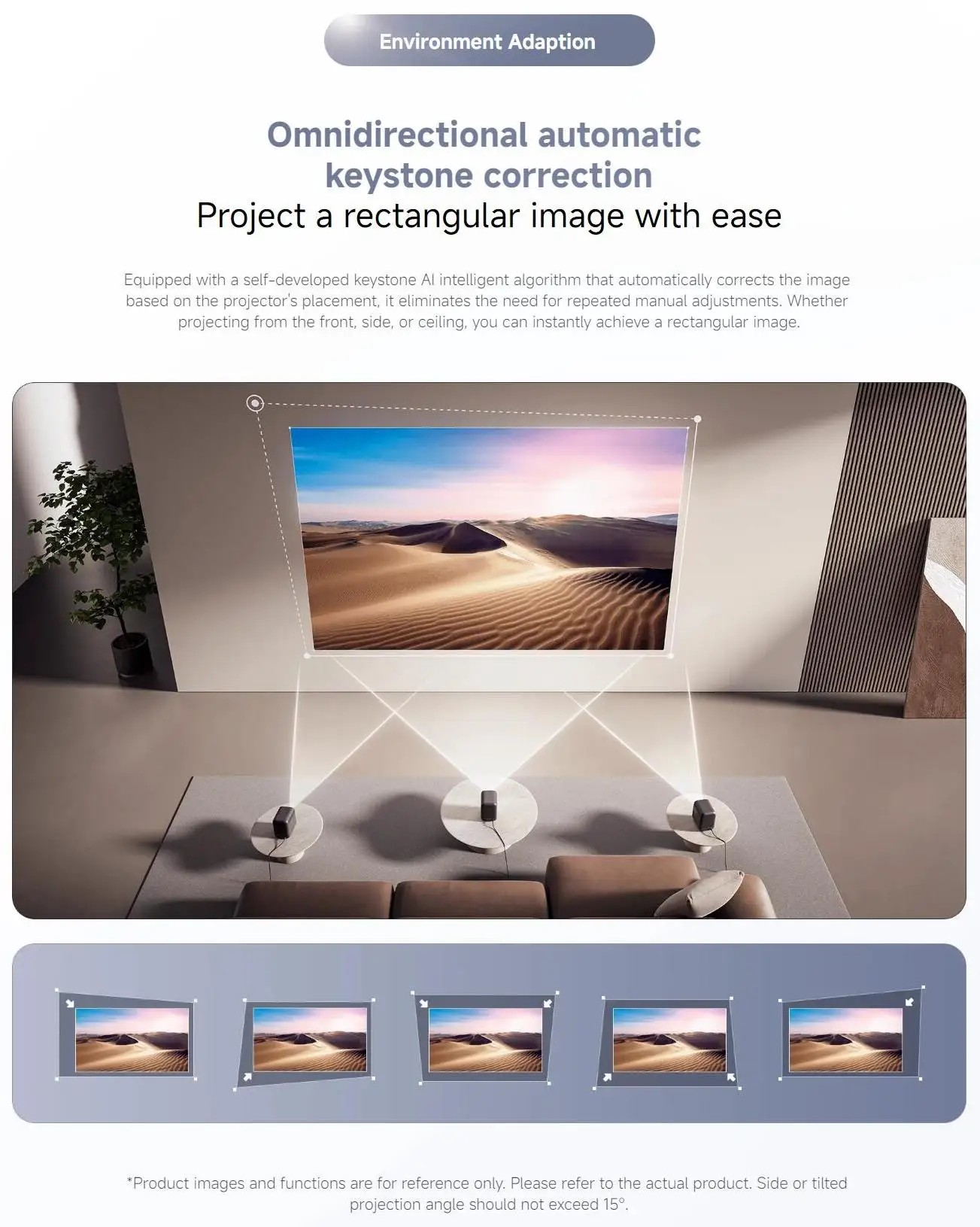

Omnidirectional automatic keystone correction

Project a rectangular image with ease

Equipped with a self-developed keystone AI intelligent algorithm that automatically corrects the image based on the projector's placement, it eliminates the need for repeated manual adjustments. Whether projecting from the front, side, or ceiling, you can instantly achieve a rectangular image.

*Product images and functions are for reference only. Please refer to the actual product. Side or tilted projection angle should not exceed 15°.

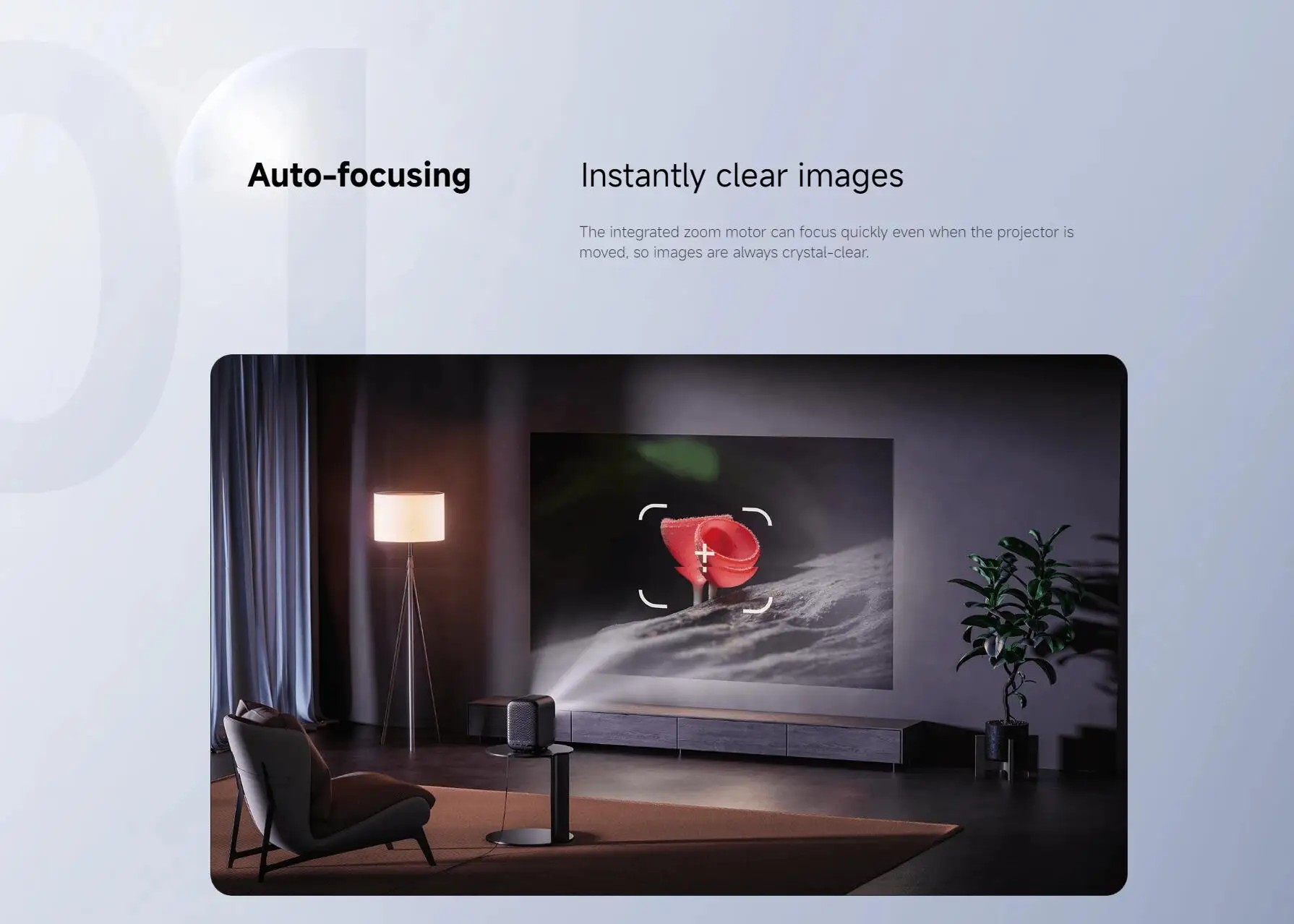

Auto-focusing

Instantly clear images

The integrated zoom motor can focus quickly even when the projector is moved, so images are always crystal-clear.

Automatic obstacle avoidance

Instantly present the whole image

Equipped with an AI algorithm, the high-precision camera cleverly avoids obstacles such as wall switches and picture frames, determining a suitable area for projection to ensure the completeness of the image.

*Due to environmental complexities, the smart automatic obstacle avoidance feature does not guarantee all obstacles will be avoided.

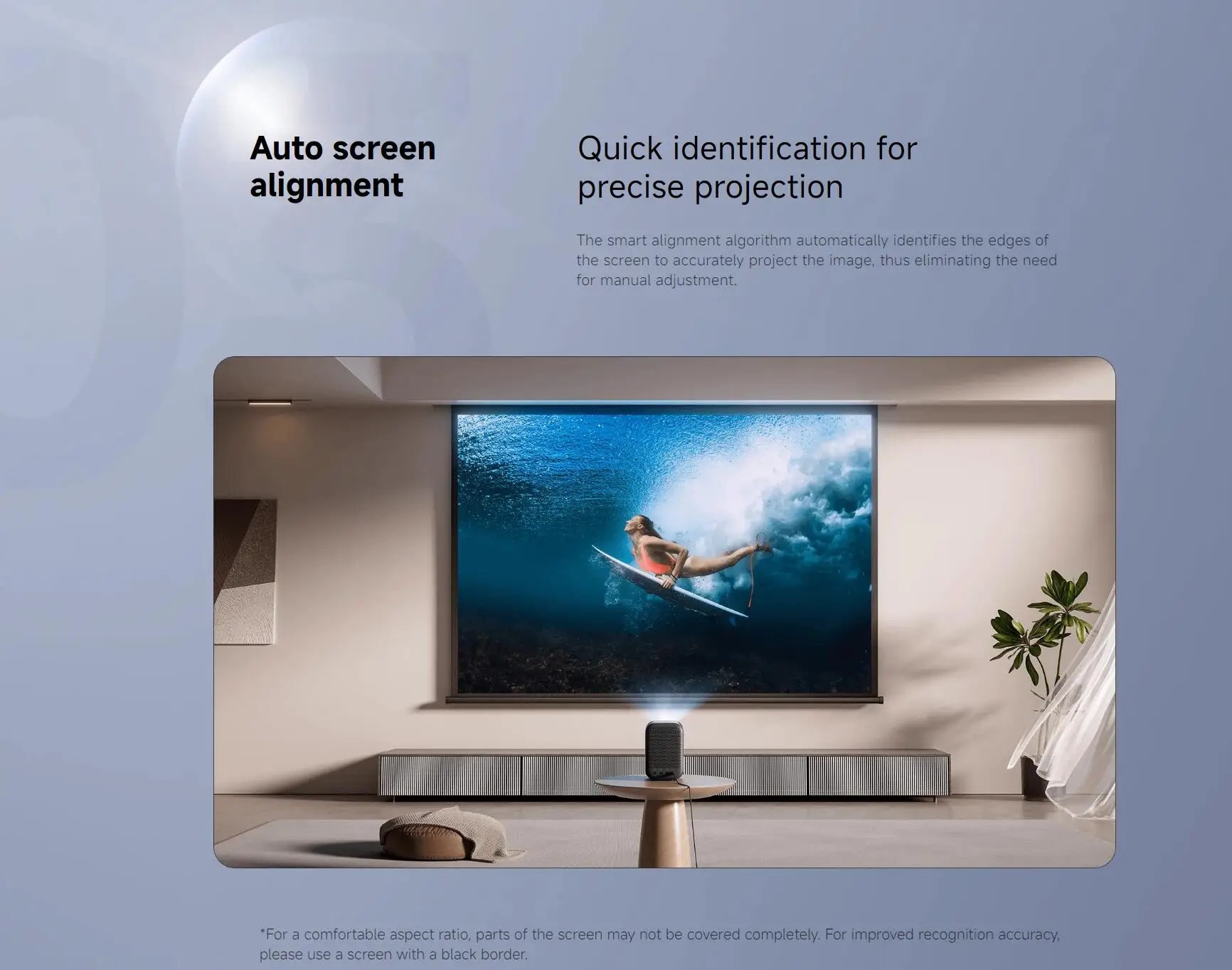

Auto screen alignment

Quick identification for precise projection

The smart alignment algorithm automatically identifies the edges of the screen to accurately project the image, thus eliminating the need for manual adjustment.

*For a comfortable aspect ratio, parts of the screen may not be covered completely. For improved recognition accuracy, please use a screen with a black border.

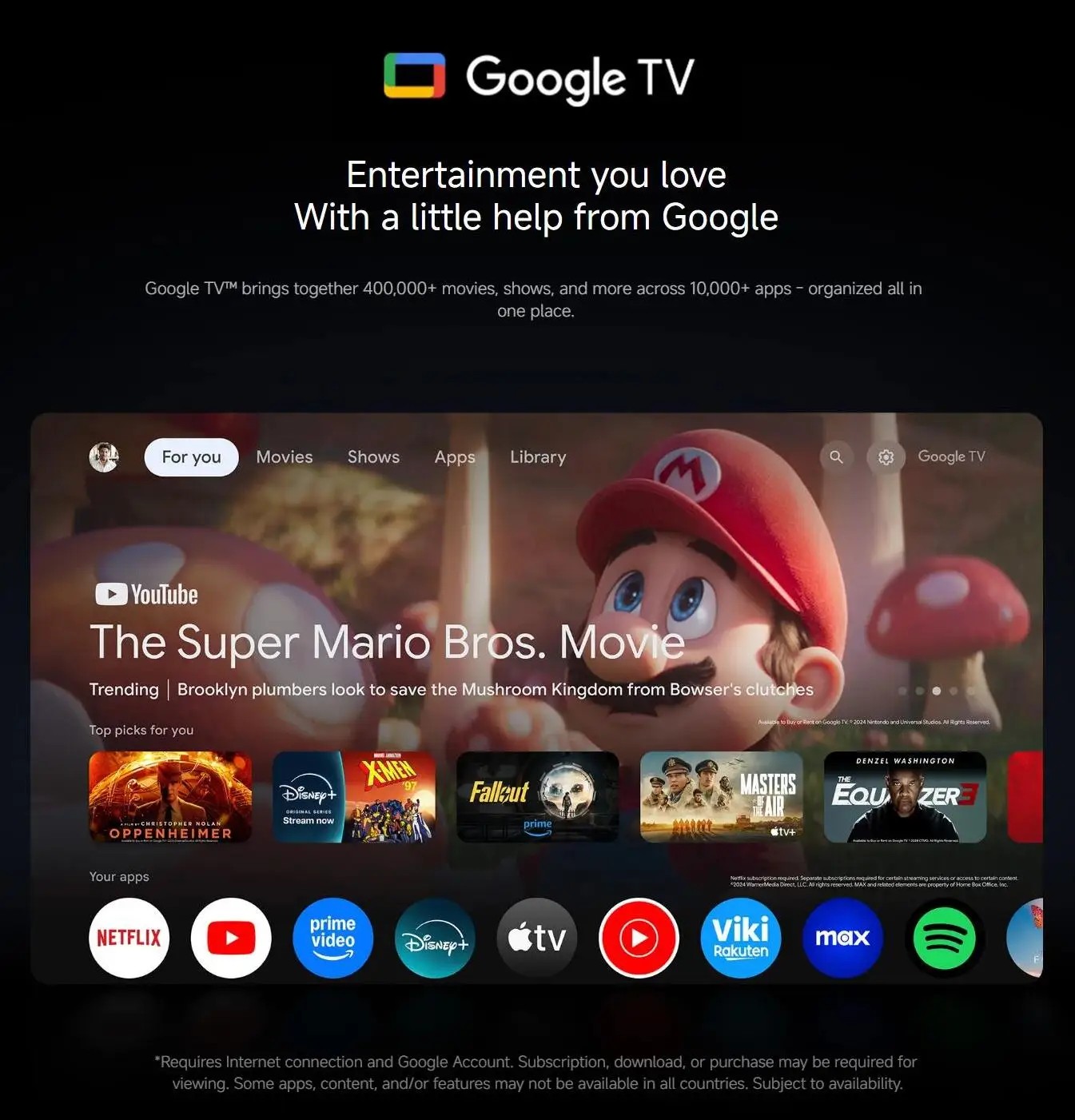

Google TV
Entertainment you love
With a little help from Google

Google TV™ brings together 400,000+ movies, shows, and more across 10,000+ apps - organized all in one place.

*Requires Internet connection and Google Account. Subscription, download, or purchase may be required for viewing. Some apps, content, and/or features may not be available in all countries. Subject to availability.

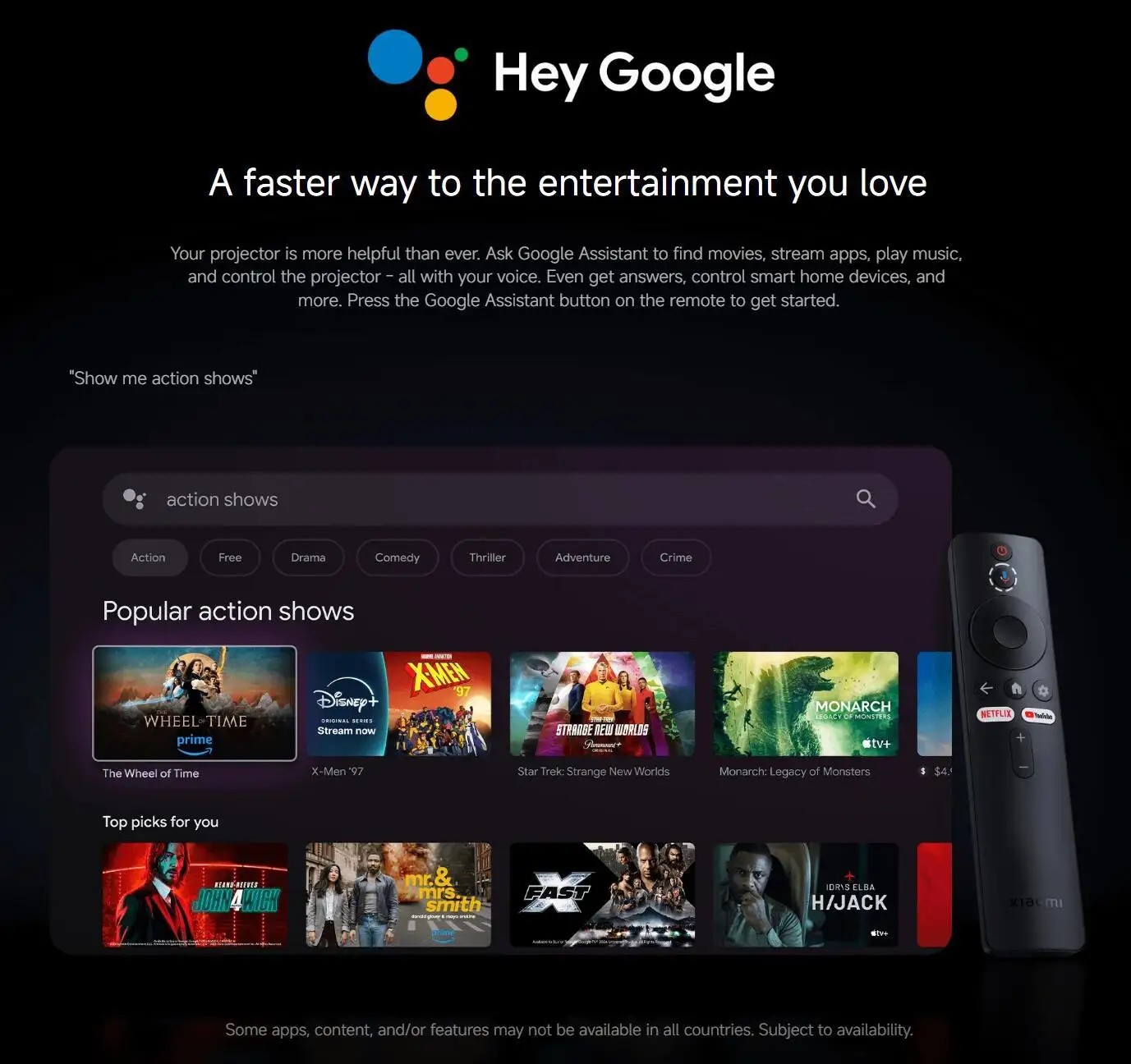

Hey Google

A faster way to the entertainment you love

Your projector is more helpful than ever. Ask Google Assistant to find movies, stream apps, play music, and control the projector - all with your voice. Even get answers, control smart home devices, and more. Press the Google Assistant button on the remote to get started.

Some apps, content, and/or features may not be available in all countries. Subject to availability.

Google Cast
Stream from your phone

Easily cast movies, shows, photos, and more from your phone or tablet.

*Casting compatible with select apps and devices.

More Surprises

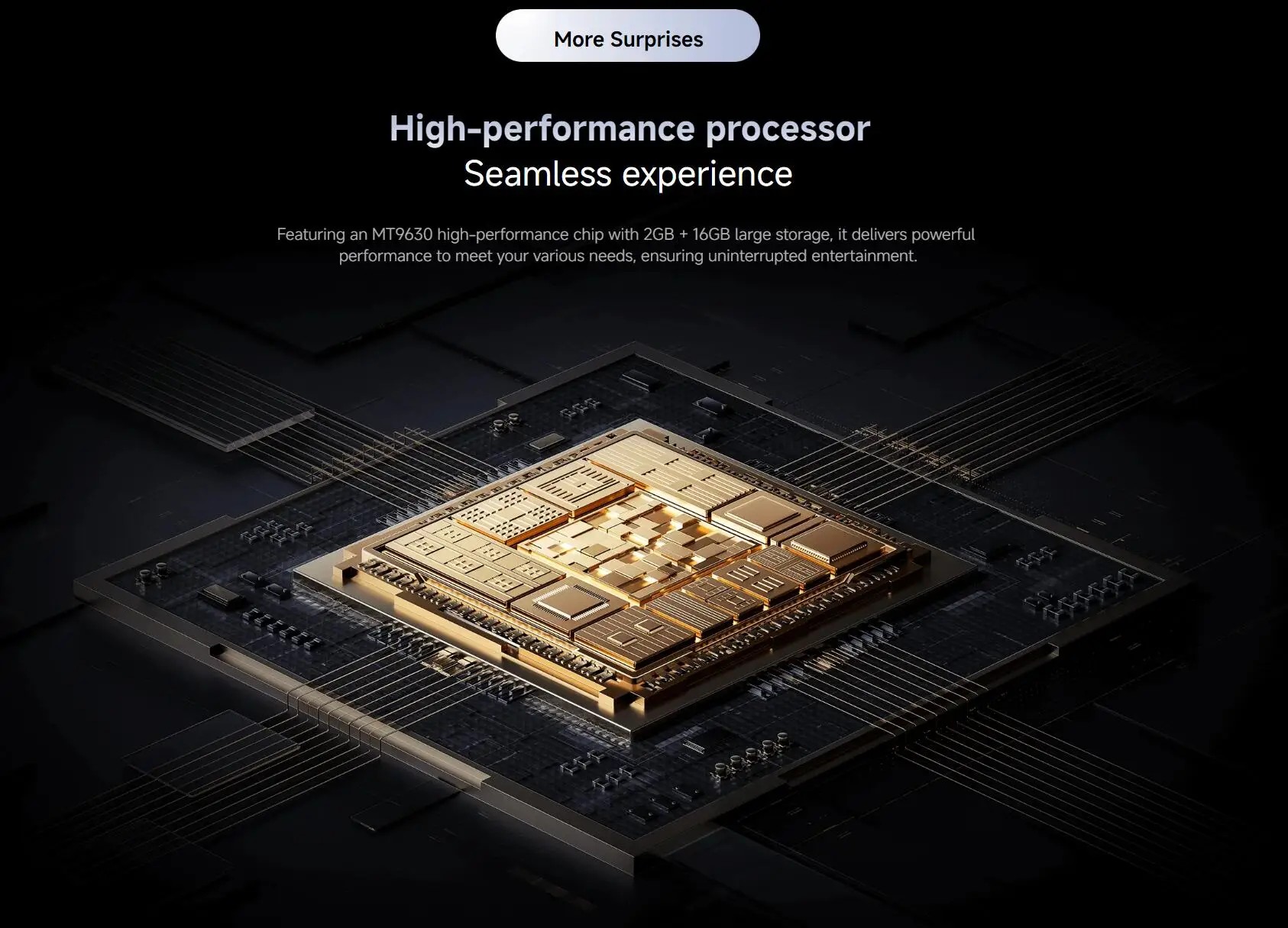

High-performance processor
Seamless experience

Featuring an MT9630 high-performance chip with 2GB + 16GB large storage, it delivers powerful performance to meet your various needs, ensuring uninterrupted entertainment.

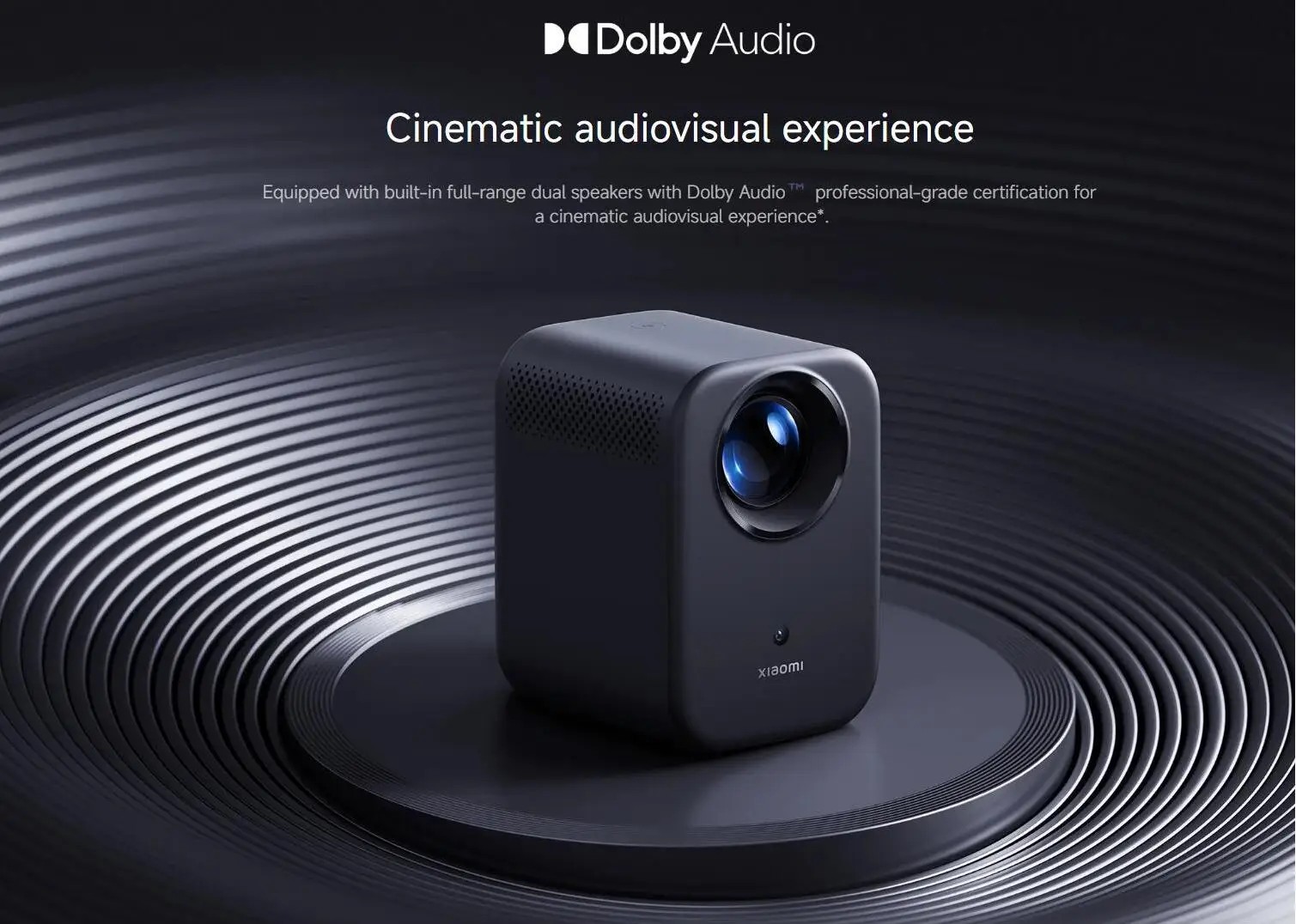

Dolby Audio

Cinematic audiovisual experience

Equipped with built-in full-range dual speakers with Dolby Audio™️ professional-grade certification for a cinematic audiovisual experience*.

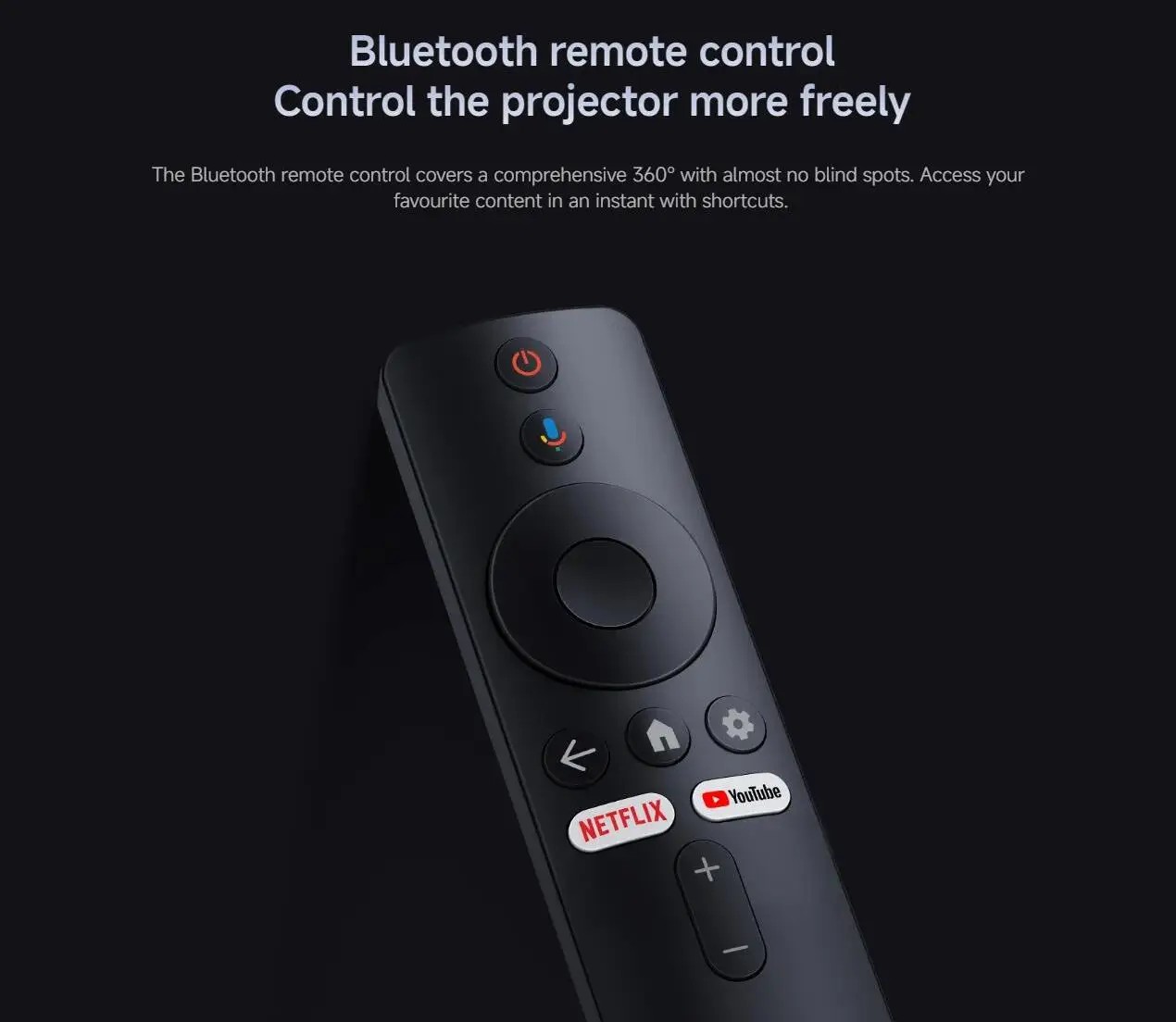

luetooth remote control

Control the projector more freely

The Bluetooth remote control covers a comprehensive 360° with almost no blind spots. Access your favourite content in an instant with shortcuts.

*Product images and models, data, functions, performance, specification parameters, user interface and other product information are for reference only. Xiaomi may amend this information. For details, please refer to the product and the product user manual. Unless otherwise stated, the data referred to on this website comes from Xiaomi's internal tests.
