ARROW Thermostatic Shower Set Home Bathroom Pressurized Shower System with Piano-Key Controls

Important Note
Please ensure the water inlet position is correctly set before installing the shower set!

1. Guidelines for standard shower sets (with decorative covers): To avoid issues, it is recommended that the water pipe end be recessed approximately 1 cm into the wall. If the pipe outlet protrudes or is flush with the wall surface, the decorative cover and base may not fit properly, requiring you to purchase a compatible decorative cover separately.
2.  Guidelines for wall-mounted shower sets with integrated storage (without decorative covers): Since these units mount directly against the wall without a decorative cover, they utilize specialized offset connectors; they can accommodate a water pipe that protrudes up to 5 mm from the wall or is recessed up to 10 mm into the wall.
3.  The distance between the hot and cold water inlets should be between 13.5-16.5cm (standard 15cm), and they must be kept at the same level. If the distance exceeds this range, you will need to purchase a widened bend angle filler separately.

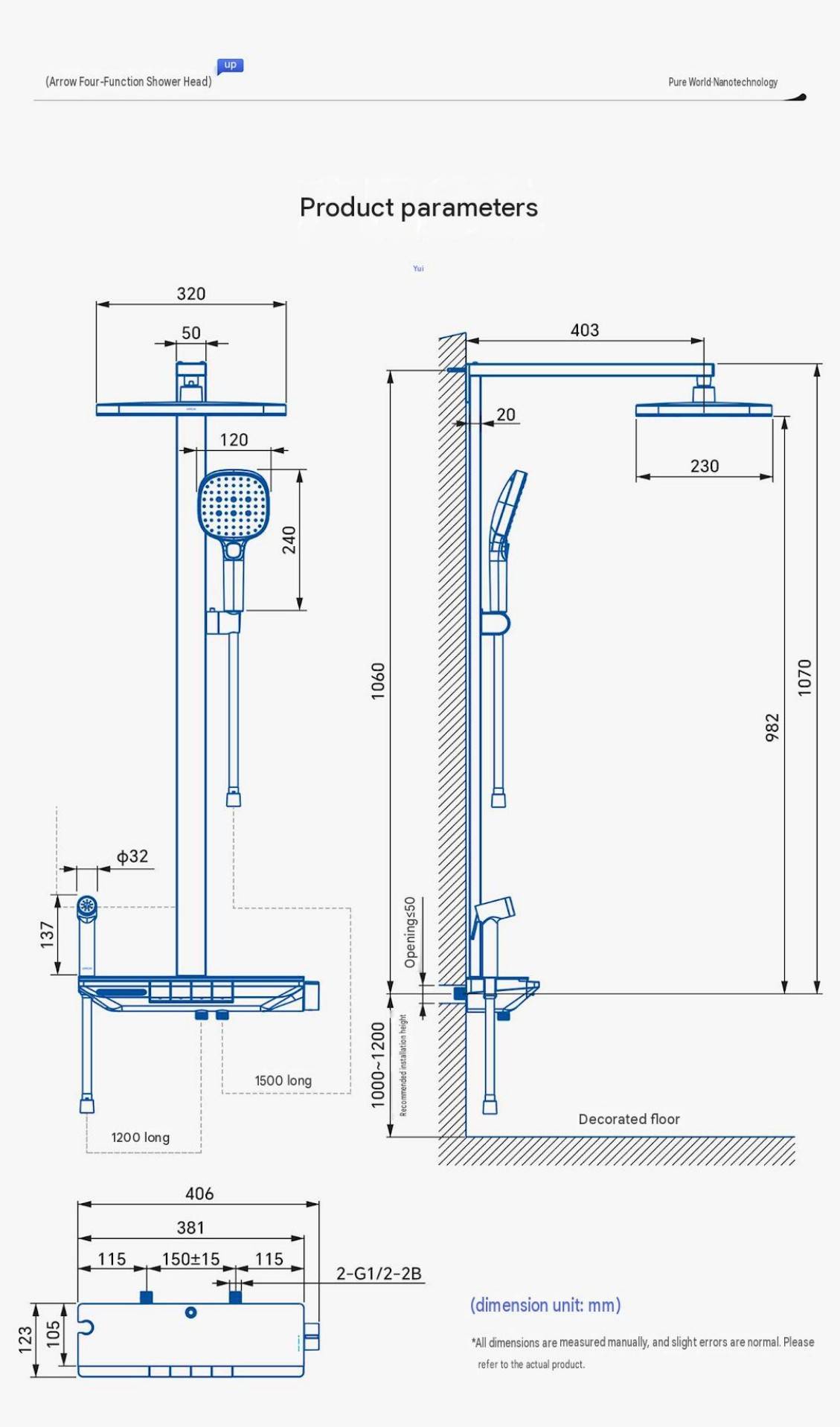

4.  Recommended distance from the water inlet to the floor: 100–120 cm for square-bar shower systems; 90–120 cm for round-bar shower systems.
   Recommended distance from the water inlet to the ceiling: at least 120 cm for square-bar shower systems; at least 100 cm for round-bar shower systems.

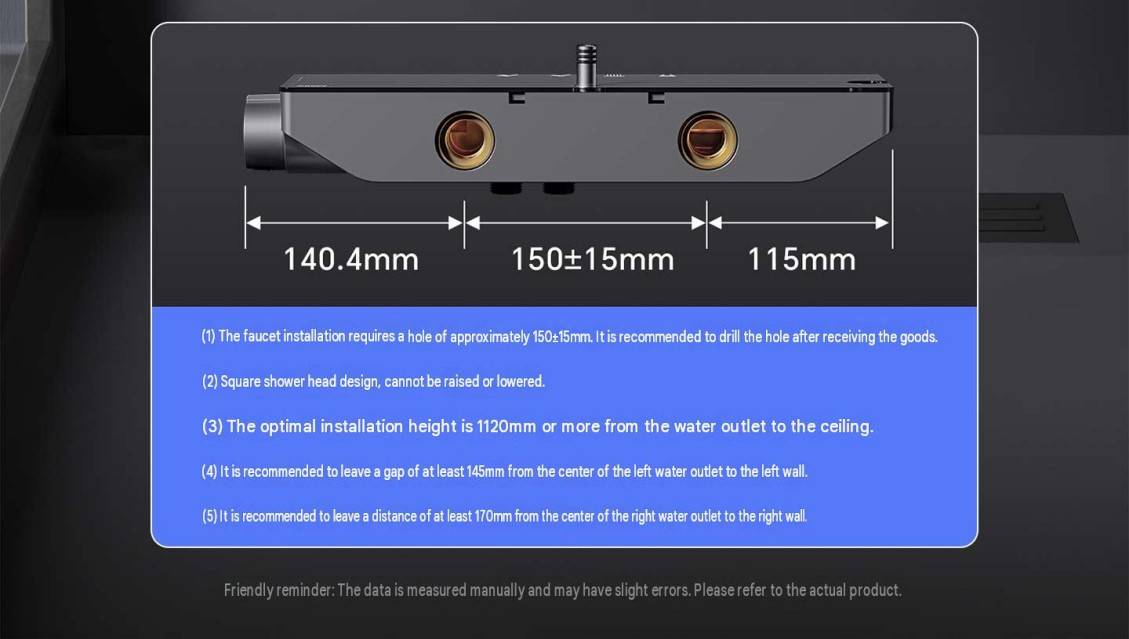

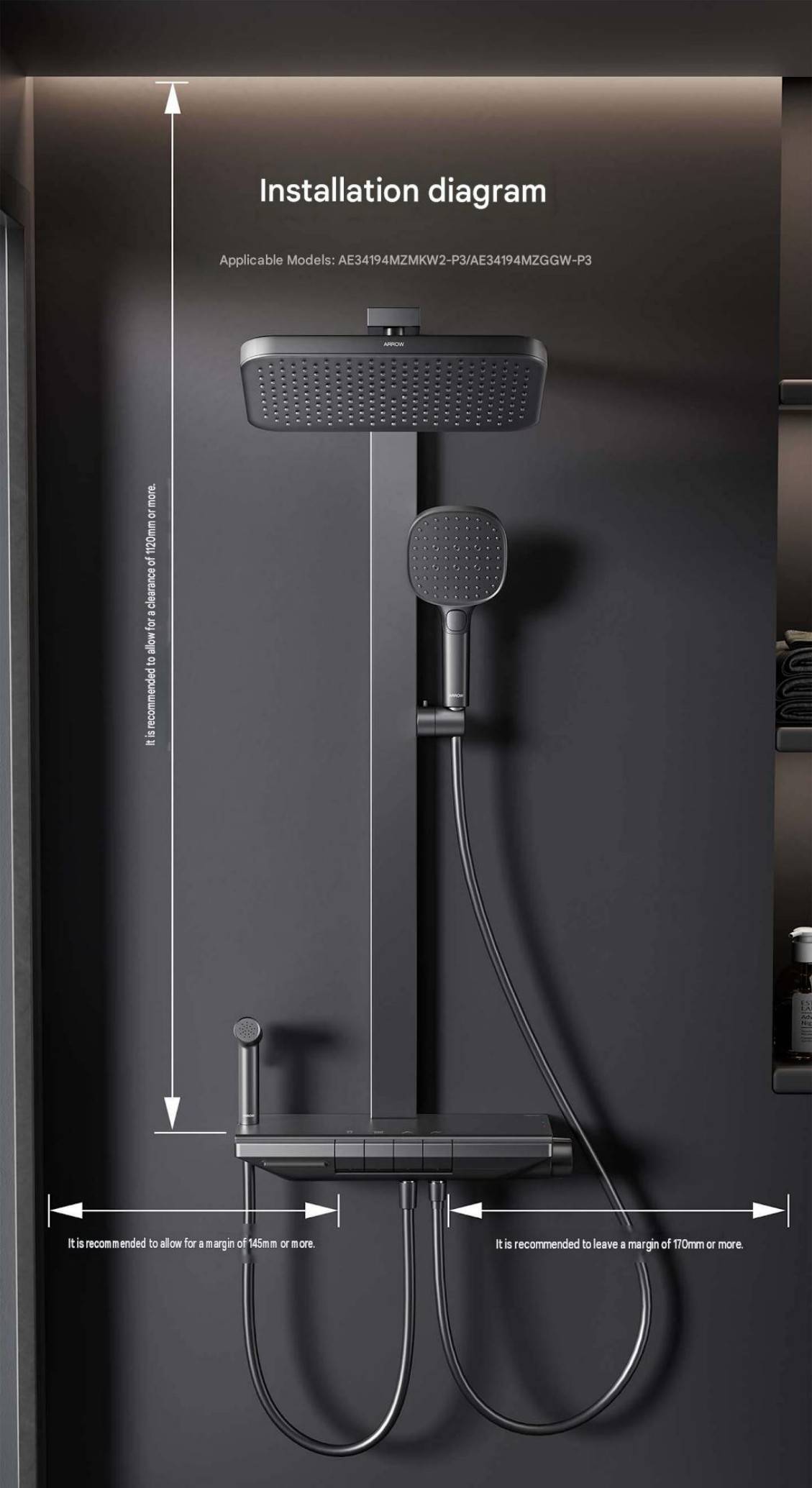

(1) Faucet installation requires a clearance of approximately 150 ± 15 mm; it is recommended to drill the mounting holes only after receiving the product.
(2) Features a square-bar shower design; the height is not adjustable.
(3) The optimal installation height requires a clearance of at least 1120 mm between the water outlet and the ceiling.
(4) It is recommended to leave a clearance of at least 145 mm between the center of the left water outlet and the left wall.
(5) It is recommended to leave a clearance of at least 170 mm between the center of the right water outlet and the right wall.

Note: Measurements are taken manually and may vary slightly; please refer to the actual product.
